Trepied din lemn Report 102 3/8"

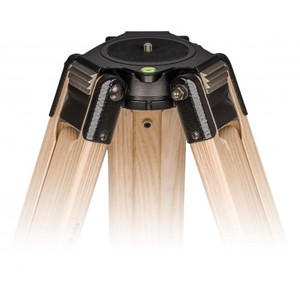

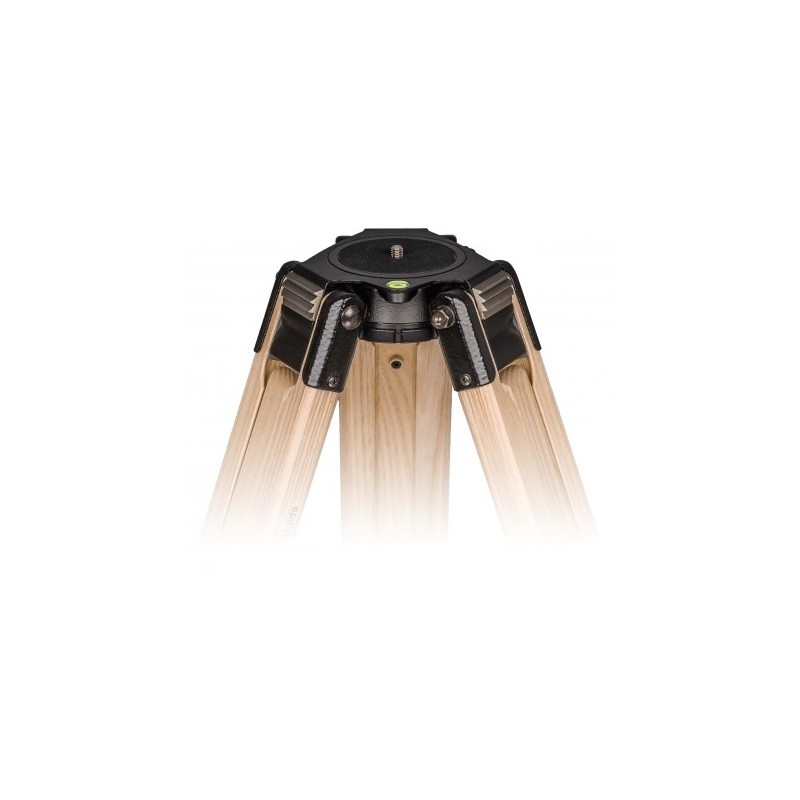

The Modular Report Tripod System: The light magnesium mounting head serves as module basis for 10 different inserts. The module insert can be changed at all times using a special wrench (included in the delivery of the changing module). The fixation in the cone ensures a positive-locking, clearance-free connection of the components.

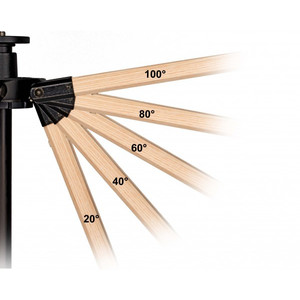

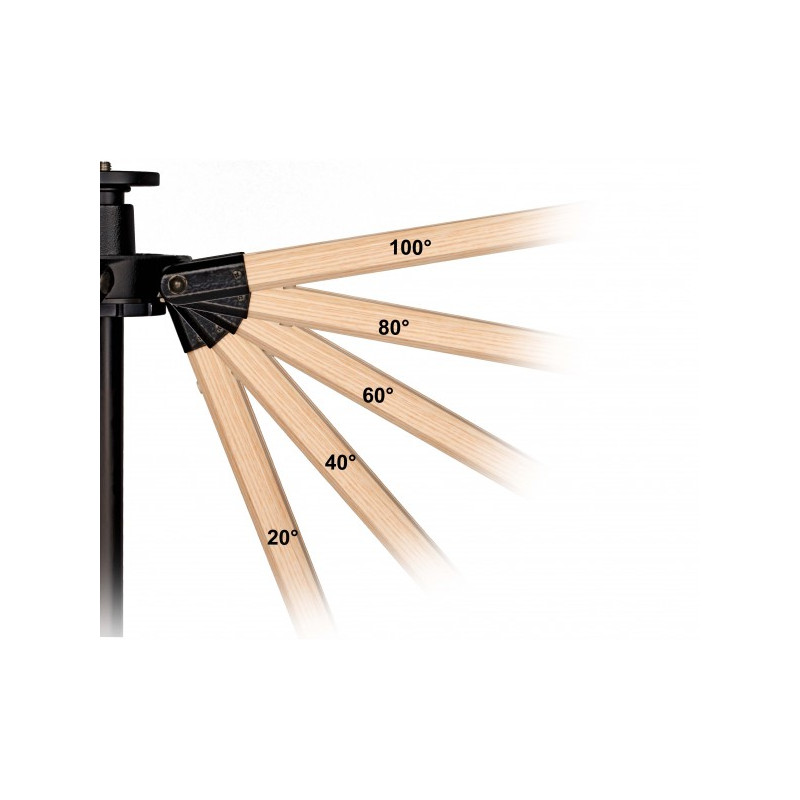

Thanks to the new stop system, it is possible to set angles of spread at approx. 20°, 40°, 60°, 80° and 100° by means of a wing catch. The stop system is designed in such a way that the specified loads of the tripods are also guaranteed at a maximum inclination of the tripod legs.

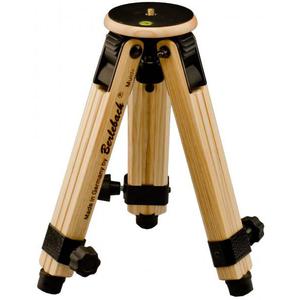

The tripod is equipped with the module insert 0 and is thus the simplest and cheapest tripod version.

The support area has a diameter of 60mm and is equipped with a fixed fastening screw (1/4", optional 3/8").

In combination with Berlebach tripod heads, it can be used for various applications and is particularly suitable for near-ground-level work.
