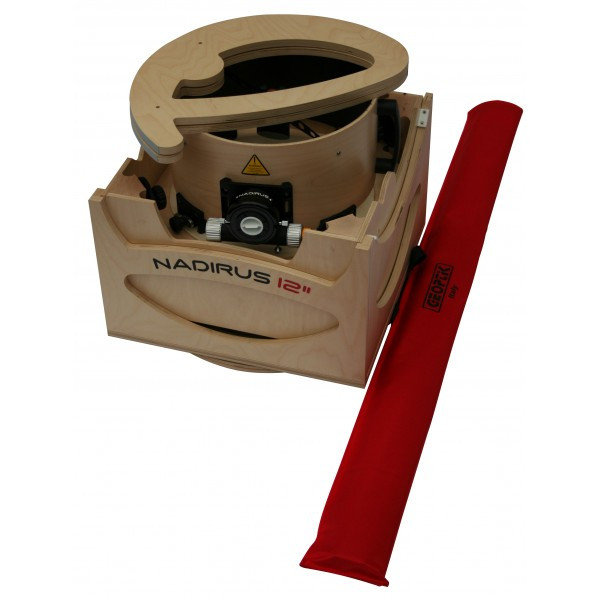

The project Nadirus is the result of cooperation with reliable partners and the special help of the Amadori study design .

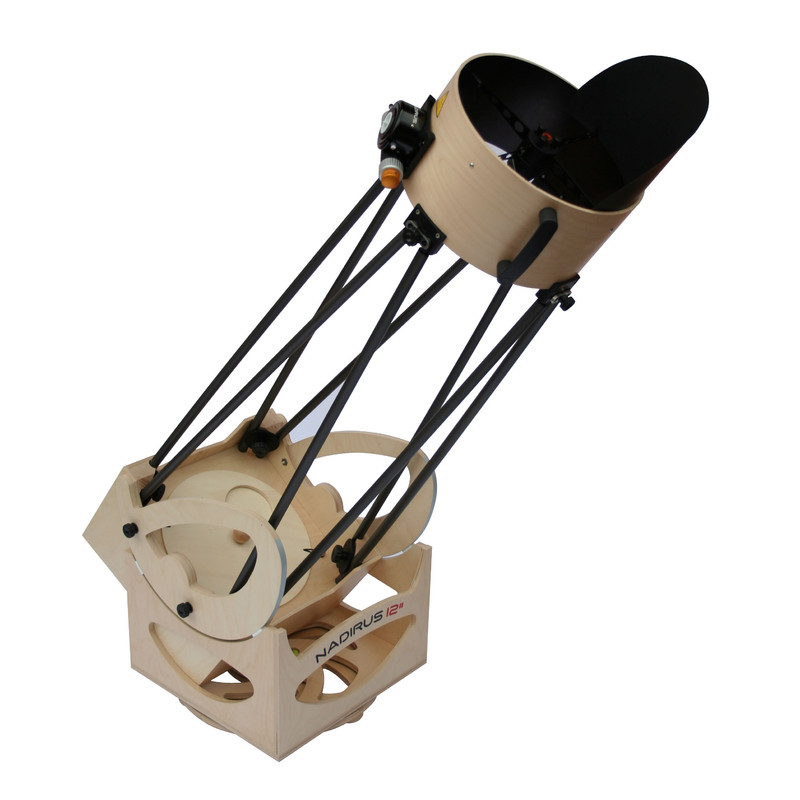

Every part of this Dobson has been designed and engineered taking into account a variety of technical and practical aspects. With an extremely curvy design we can offer an excellent instrument produced in Italy with the best Italian style. The quality of materials is the best available on the market and technical solutions makes it absolutely unique.
The graphic motif that characterizes the NADIRUS Dobson is the design of the wheel that identifies in the intersection of 6 circles of different diameters, and some suitably radiused corners, that will surround the profile. These curves are repeated on the body of the base with the aim of lightening.

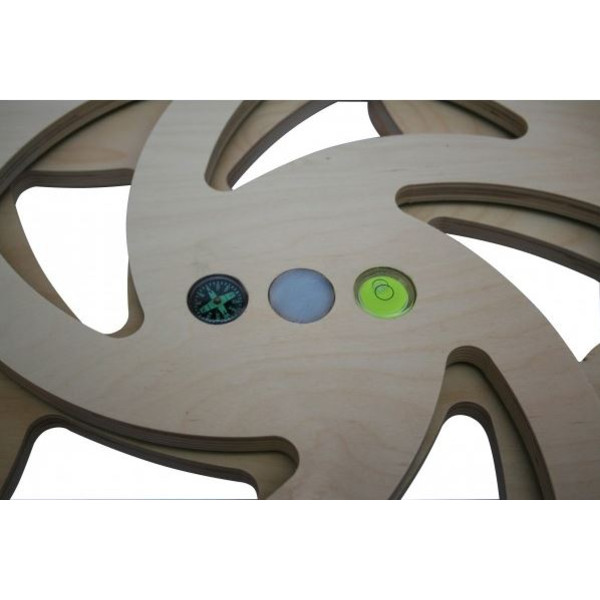

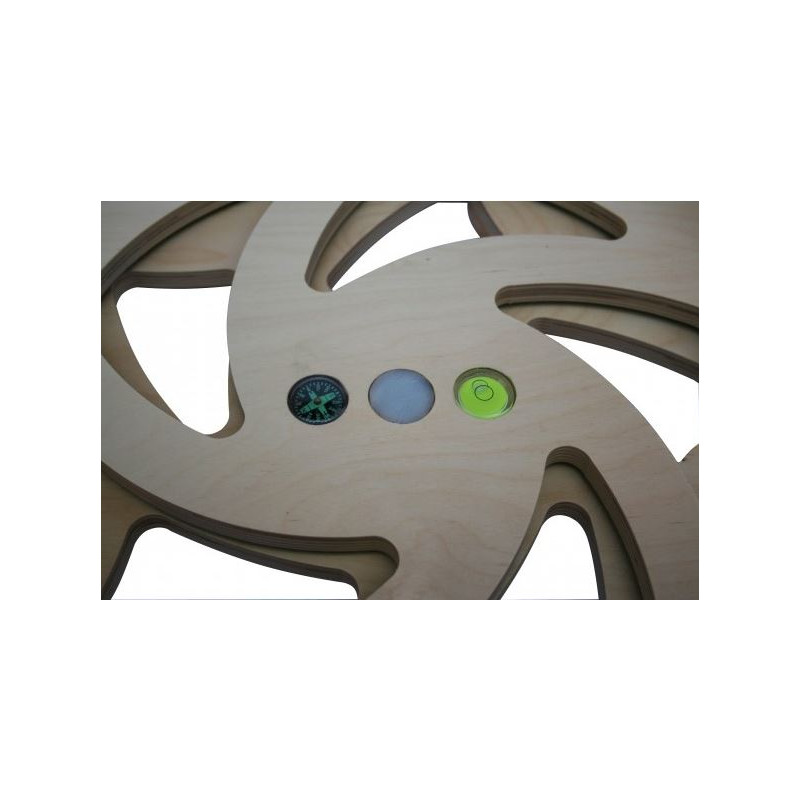

Even the base of the rotating system has been lightened with a pattern, unique, reminiscent of the blades of a fan. Attention to the design, technique and mechanics, in the name of practicality which has been the dominant theme of this project.

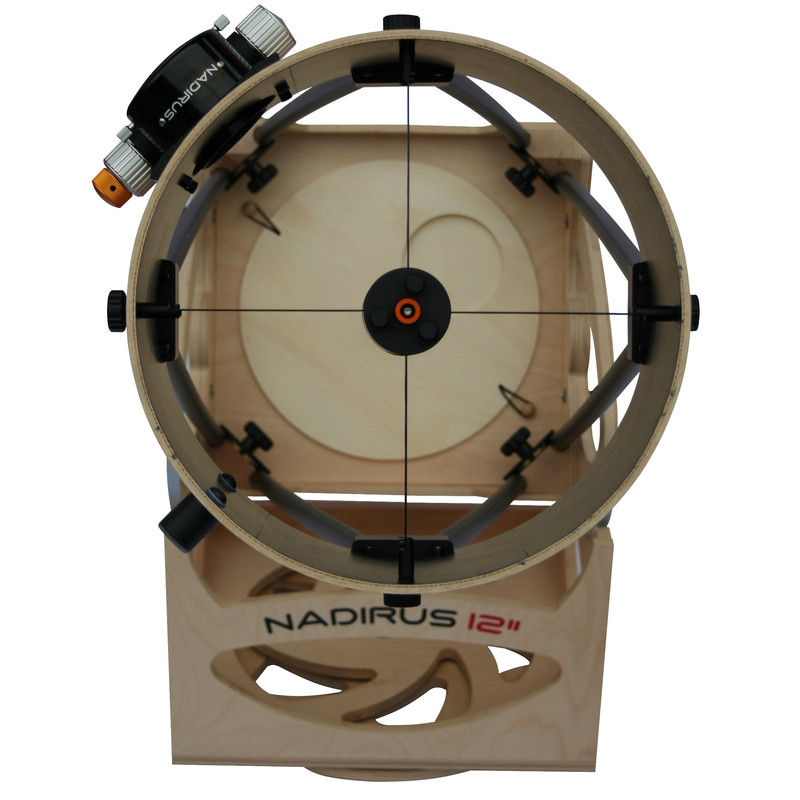

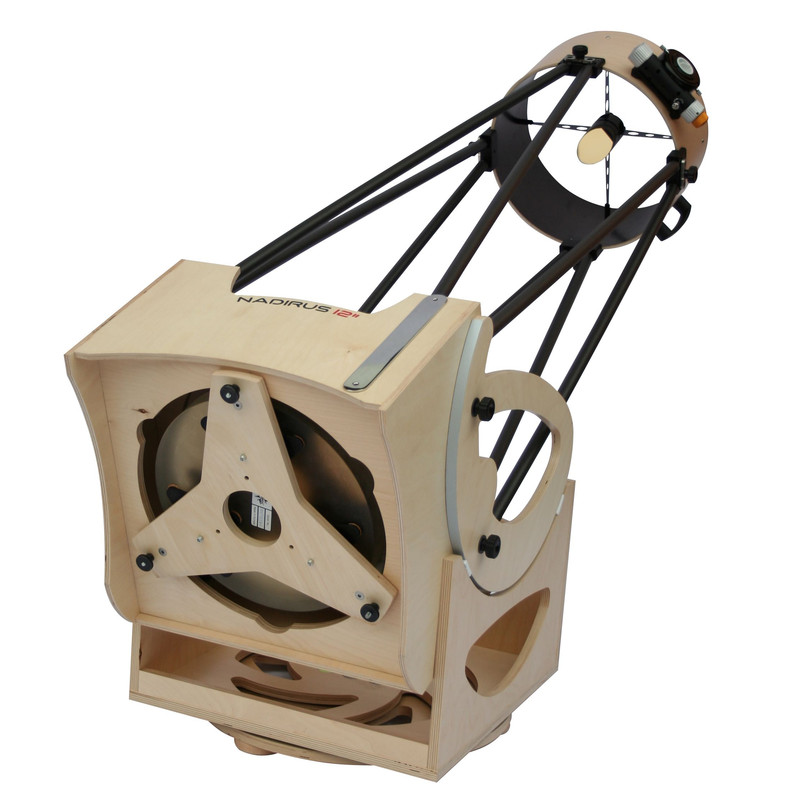

We privileged a structure in lamellar beech wood which makes it stable and lightweight. In particular, it has been taken care of the upper cylinder housing is where the spider secondary mirror holder which was made of birch plywood crossed beams that give the piece a unique strength and stability. Although the primary mirror cell is made of birch plywood with a support system where the 9-point floating mirror rests on discs of natural cork foam.
The entire structure is varnished for outdoors.
Many mechanical and other technical details has been studied that confirming the right choice with your purchase and will give you the evidence of the high quality, taking you in the best condiction for your astronomical observations.
Dimension and weight:
- Rocker box: 45x45x320 mm (including the circular plate); 5,2 Kg
- Mirror box: 425x425x275 mm; 13,8 Kg
- Upper assembly: 345x200 mm; 2,8 Kg
- Tubes: 1,6 Kg
