Mai multe despre această serie Stemi 305...
Din pacate, descrierea acestui produs nu a fost inca tradusa in limba romana, din acest motiv veti gasi in loc o descriere in limba engleza.

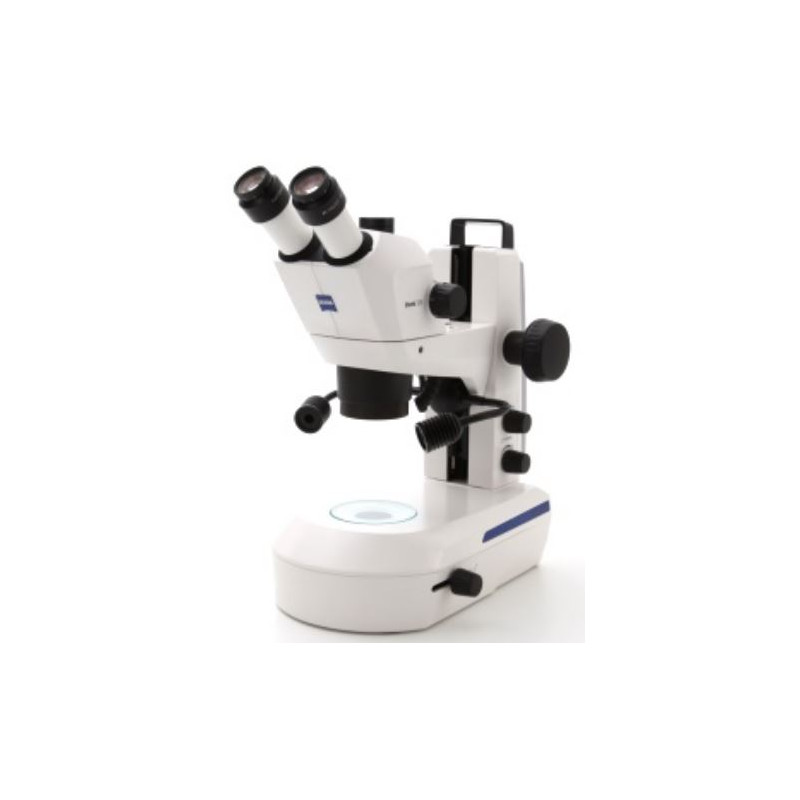

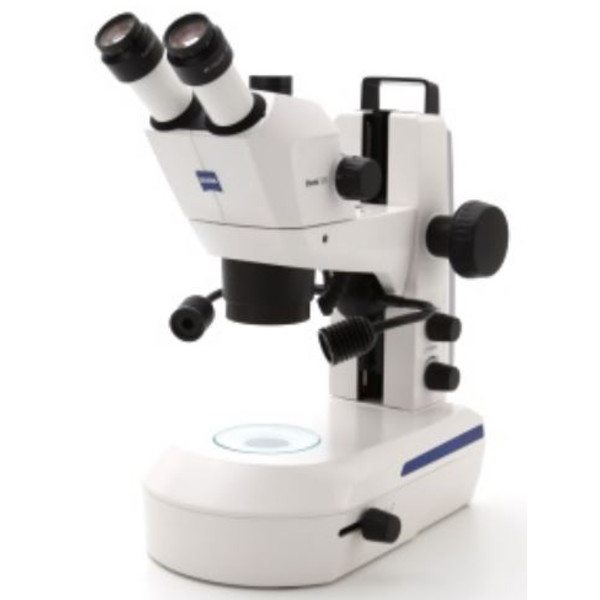

ZEISS Stemi 305 LAB Set
ZEISS Stemi 305 microscope with stand and lighting, ready for use, particularly suitable for the biology laboratory and for education courses focusing on unstained samples.
Consisting of:
Stemi 305 microscope body
- Greenough system with 11° stereo angle
- manual 5:1 (0.8X to 4.0X) zoom, can be operated from both sides
- fixed zoom click-stops at 0.8X-1X-2X-3X-4X
- free working distance, without front optics, 110mm
- viewing angle 45° with adjustable interocular distance 55 to 75mm
- 30mm eyepiece with maximum field number of 23mm
- interface to microscope D=76mm for Stemi mount / S mount
- interface D = 66 mm for illuminators
- M52 thread for front optic or polarizer

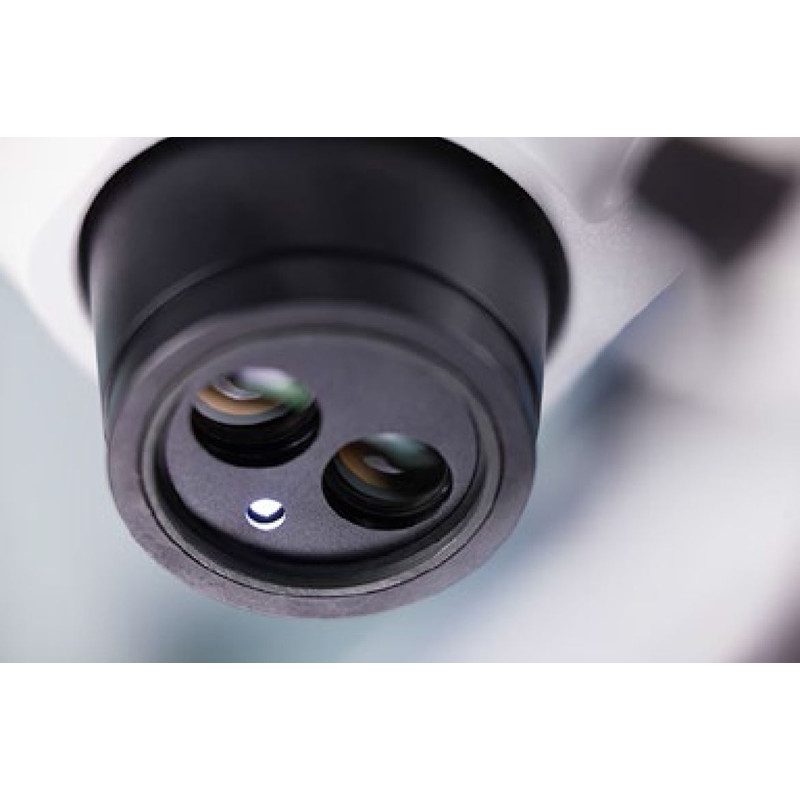

- LED lighting integrated almost perpendicularly into the optics (IVI) for K EDU/LAB/MAT stands or K LED controller
- 2 eyepieces, 10x23, Br. foc.
- RJ12 spiral cable
K LAB tripod
- stand W190xD310xH95 mm
- working surface W160xD195 mm
- interfaces, d = 84mm for stages and d = 45mm for DL polarizer
- 250mm column with focus drive and handle, travel range 145mm
- Stemi mount , d = 76mm, capacity 5Kg, adjustable friction
- Built-in LED transmitted light unit, with rotating and sliding mirror, for brightfield, darkfield and obliquely transmitted light
- 2 sockets - for IVI and K LED lamp
- separate AL / DL controls for on / off / dimming
- built-in power supply: 12V DC 24W / 100 to 240V AC / 50 to 60Hz
- glass and B/W plastic plate, D = 84x5mm
- country-specific power cable, EURO C7
- dust cover
LED K double spot light
- gooseneck double spot, 2x 160mm for variable incident lighting
- 2 M24x0.5 threads for polarizer
- adjustable height
- for K EDU / LAB / MAT stands
Stemi 305 EDU-Set, trino
Enjoy the flexibility of Stemi 305 trino with access to ZEISS Axiocam microscope cameras and ZEN imaging software. The fixed 50/50 division between left eye and camera path is optimal for live demonstrations: your students or customers can follow your microscopic work live on the monitor. Combine Stemi 305 rino with Axiocam ERc 5s and get the advantage of various interfaces: HDMI for direct monitor access, USB to use with Windows PC and free ZEN lite imaging software, or LAN to connect to a digital network and control the camera with the iPad imaging app Labscope
