B-290 Serie

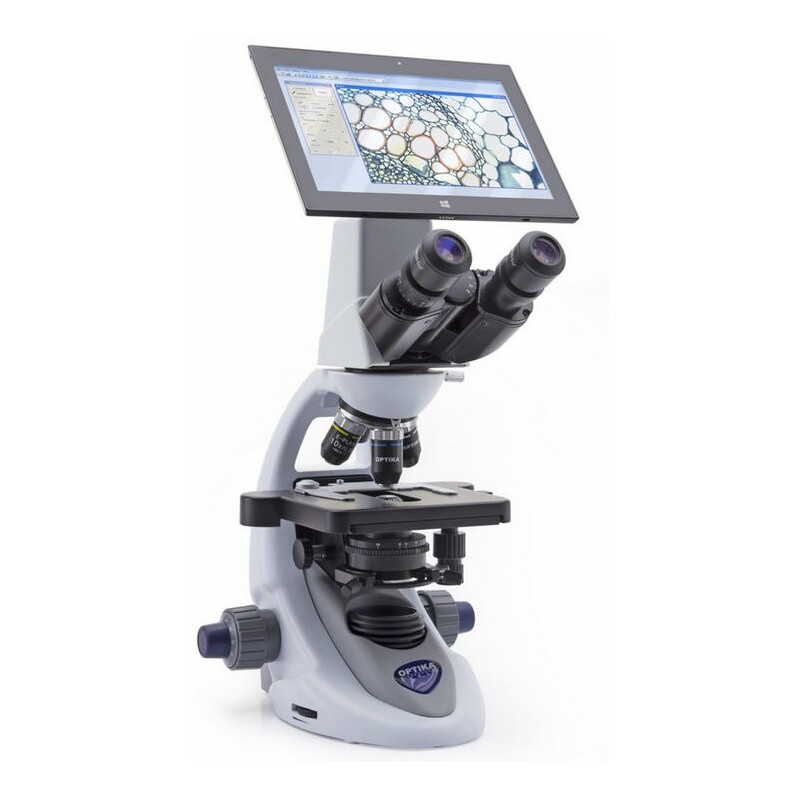

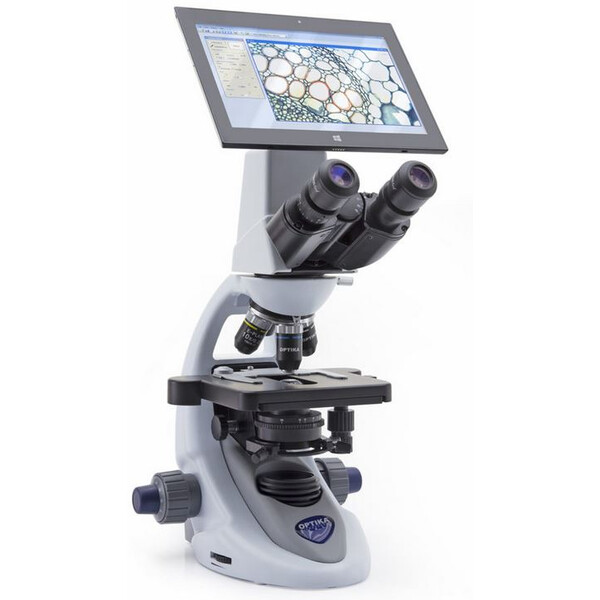

Binocular microscope 1000x, N-PLAN objectives, belt drive stage, X-LED illumination
Technical specifications
- Head: Binocular, 360° rotating, 30° inclined.
- Eyepiece: Wide Field 10x/20mm
- Nosepiece: Quadruple, reversed
- Objectives; N-PLAN Achromatic 4x/0.10, 10x/0.25, 40x/0.65, 100x/1.25
- Stage: Double layer, 150x133 mm with X-Y 75x50mm moving range
- Focusing: Coaxial coarse and fine focusing
- Illuminator: X-LED3 system with adjustable intensity
- Condenser: Sliding-in, 1.25 N.A. Abbe type with adjustable height and iris diaphragm
- Power supply: 100-240 Vac 50-60 Hz external power adapter 6Vdc output.

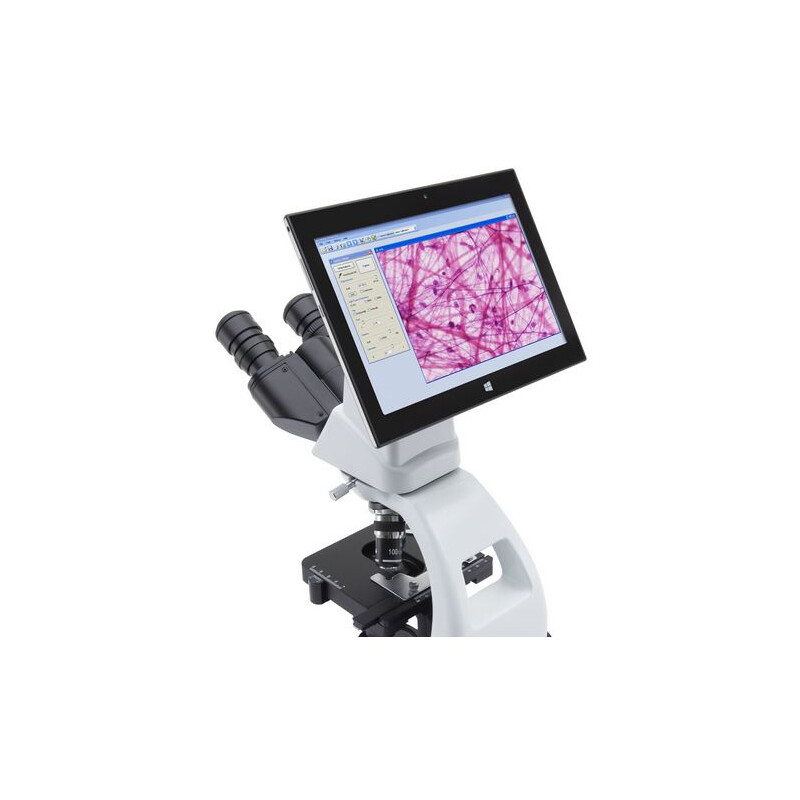

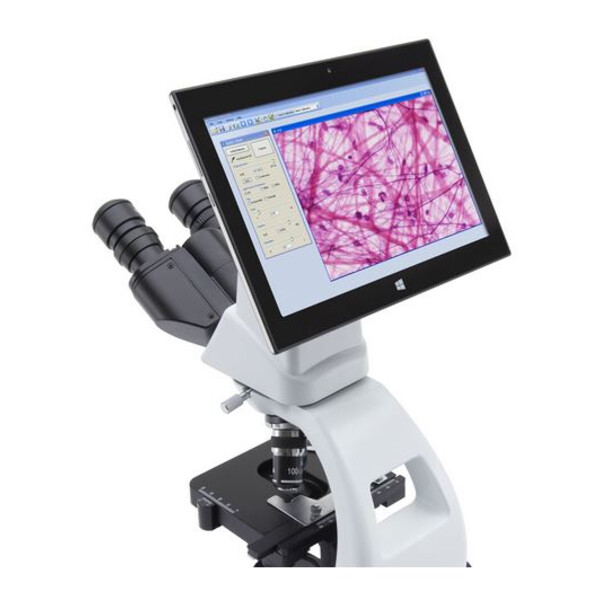

B-290TB

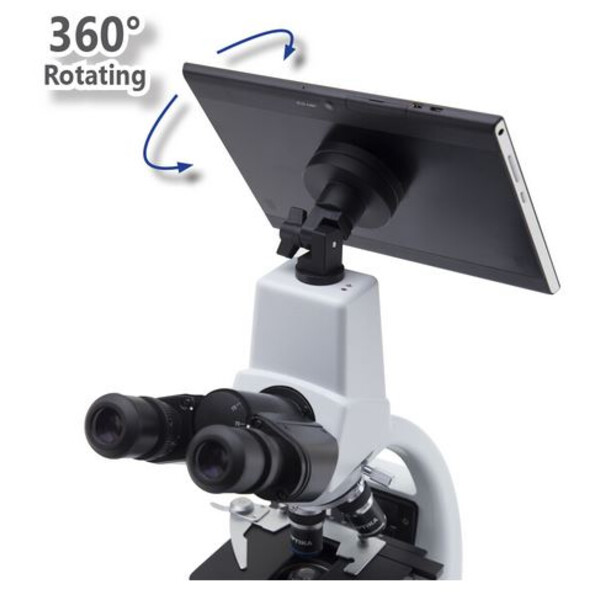

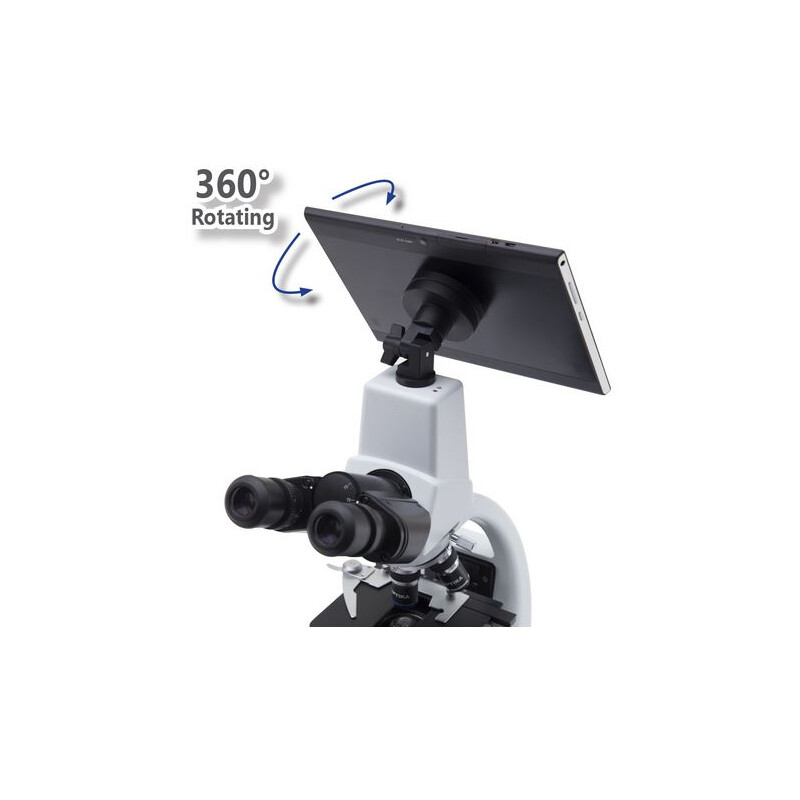

- The tablet can be rotated in all directions on the microscope. This makes it especially well-suited for demonstration purposes
- The tablet can easily be removed from the microscope.
- The system is patent pending.
Camera:
- Camera resolution: 3.14 megapixels
- Signal output: USB 2.0
- Sensor size: 1/2.5"
- Sensor technology: CMOS
- Image format: 4/3 full-frame format
- Image size: 2048x1536
- No additional drivers required (Microsoft drivers installed)
- Image capture: Continuous autonomous image creation, compressed video capture
- Controlled parameters: Magnitude, degree of amplification, exposure time, colour enhancement
- Full resolution frame rate (fps) 8@1280x1024
- Other resolution frame rate (fps) 30@640x480
- Sensitivity 0.53 V/lux-second
- Signal/noise ratio (DB) 40.5
- Dynamic range (DB) 66.5
- ADC conversion 12 Bit
- Color Depth 8 Bit
- Exposure time … - 1.5 sec
- Binning 1x1
- IR filter Yes
- IR filter range (nm) 680
- Camera Power PC USB
- C-Mount Yes

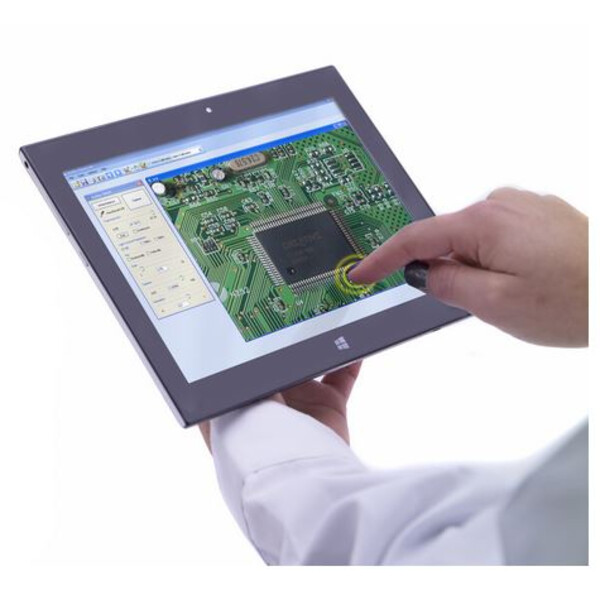

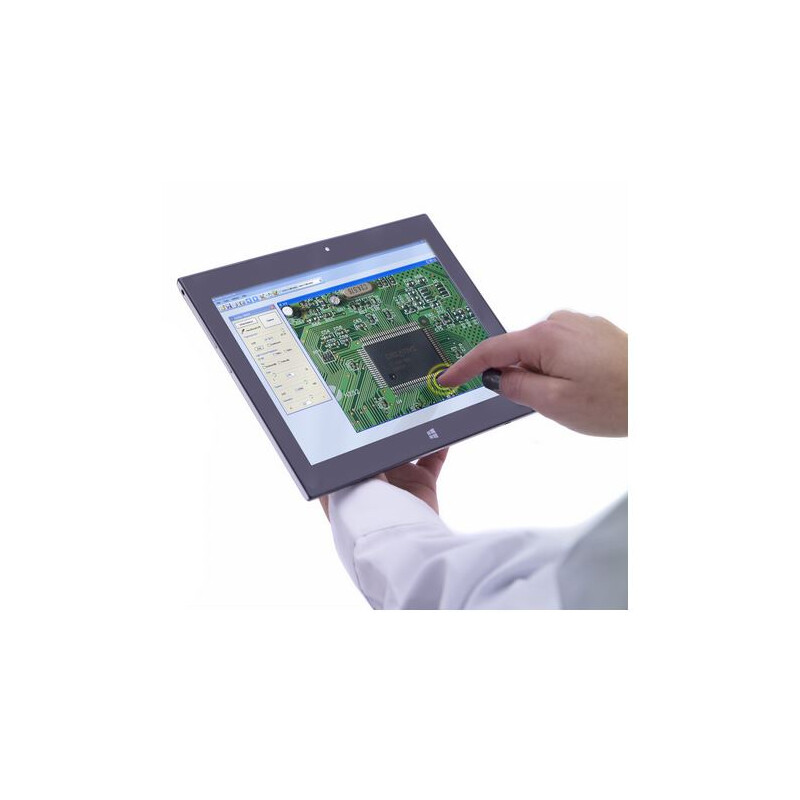

Tablet
- Operating system Windows 10 (64Bit)
- CPU Intel® Atom™ Z8350, Quad core
- CPU speed 1.44 GHz
- Graphic card Intel® HD Graphics 400
- RAM Ram 4 GB LPDDR3
- Screen size LED 10.1” IPS Multi Touch Screen
- Screen resolution 1920x1200
- Storage HDD 64 GB
- Network Wireless - Bluetooth 4.0
- Input Micro USB (OTG) - USB Type-C - Micro SD card reader
- Output ports Microphone - Headphone - Micro HDMI
- Battery type Lithium-ion
- Battery capacity 6500 mAh
- Power consumption 15W
- Power supply 5V 3A
- Dimensions (mm) 261x167x9
- Weight (kg) 0.53
- Language Multi-language
- Keyboard not provided
