Nr. articol: 53990

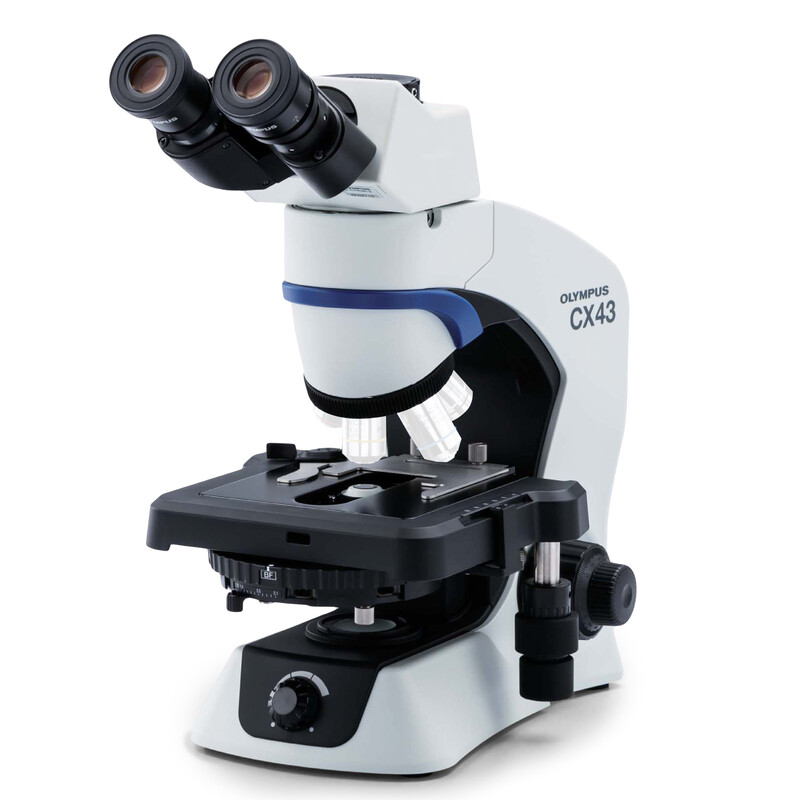

Microscop Olympus CX43 FL, trino, infinity, LED

$ 9.400,00 incl. TVA plus costuri de livrare
prea scump?
termen scurt
gata de livrare in 3-5 saptamani + timp de tranzit

Nu este posibilă livrarea înainte de Crăciun


Descriere produs

Mai multe despre această serie CX43...

Din pacate, descrierea acestui produs nu a fost inca tradusa in limba romana, din acest motiv veti gasi in loc o descriere in limba engleza.

Olympus CX43 Fluorescence (E07MIS0052)

Comfortable, High-Throughput Routine Microscopy

The CX43 microscope enable users to remain comfortable during long periods of routine microscopy observations. The microscope frame conforms to the user’s hands and the location of the control knobs maximize ergonomics to improve work efficiency. Users can quickly set a specimen with one hand, while adjusting the focus and operating the stage with the other hand with minimal movement. The microscope also features an optional camera port for digital imaging.

Upright fluorescence microscope set for transmitted and reflected light observations

  • integrated LED illumination
  • low-positioned quintuple nosepiece
  • mechanical stage (211 x 154 mm, travelling range 76 x 52 mm) with right handle, low drive control, stage lock pin and specimen holder for one slide
  • Abbe condenser, NA 1.25
  • 7 position turret: BF(4X - 100X), 2X, DF, Ph1, Ph2, Ph3, FL with shutter
  • Coaxial/fine focus, complete stroke 15 mm, fine stroke 300 µm/rotation, graduation 2.5 μm
  • Reflected fluorescence illuminator with built-in LED light source for blue excitation (470 nm) and manual light intensity control
  • trinocular tube with two widefield eyepieces for FN20

Included components:

  1. Trinocular phototube U-CTR30-2-2 (N1468400)
  2. Eyepiece: WHB10X-H (N1130000) (dioptric compensation)
  3. Eyepiece: WHB10X-2 (N1129900)
  4. Fluorescence condenser: CX43-RFAB (N5730900)
  5. Tripod: CX43RF (N5731700)
  6. Dust cover (038159)
  7. 2x connection cable UYCP (035425)

Without objectives!!

Please choose your objectives from the accessories!

Date tehnice

Optica


Numarul de obiective
0
Iluminare
Lumina transmitita
Condensator
Abbe (7-Positions HF(4X - 100X), 2X, DF, Ph1, Ph2, Ph3, Fluo)
Tip lampa
LED
corectat la infinit
da
Sistem optic
infinit
Ocular
10x/20

Capacitate


Contrast faza
da
Fluorescenta
da
Camp intunecat
nu
Polarizare
da
camp luminat
da
Contrast
Fluorescenta

Mecanica


Tip constructiv
Trinocular
Focusare
Actionare fina si rapida
Masa specimene
Masa X-Y (211 x 154 mm)
Revolver
5

Extras


Obturator camp iluminat
da
Ocular de camp larg
da (10x/22)

General


Latime (mm)
211
Lungime (mm)
397
Inaltime (mm)
393
Serii
CX43
Greutate (g)
7,3

Contrast


Fluorescenta
da

Domeniul de aplicare


Medicină
da
Biologie
da

Aplicaţii


Universitate
da
Medicină internă
da
Laboratoare centrale
da
Botanică
da
Microbiologie
da
Citologie si patologie
da
Biochimie
da
Biologie marină
da

Alte produse


numar produs
E0460052 (E07MIS0052)

Siguranța produselor

Producător: Evident Europe GmbH, Caffamacherreihe 8–10, 20355 Hamburg, DE, https://www.evidentscientific.com/
