Mai multe despre această serie BA-310...
Din pacate, descrierea acestui produs nu a fost inca tradusa in limba romana, din acest motiv veti gasi in loc o descriere in limba engleza.

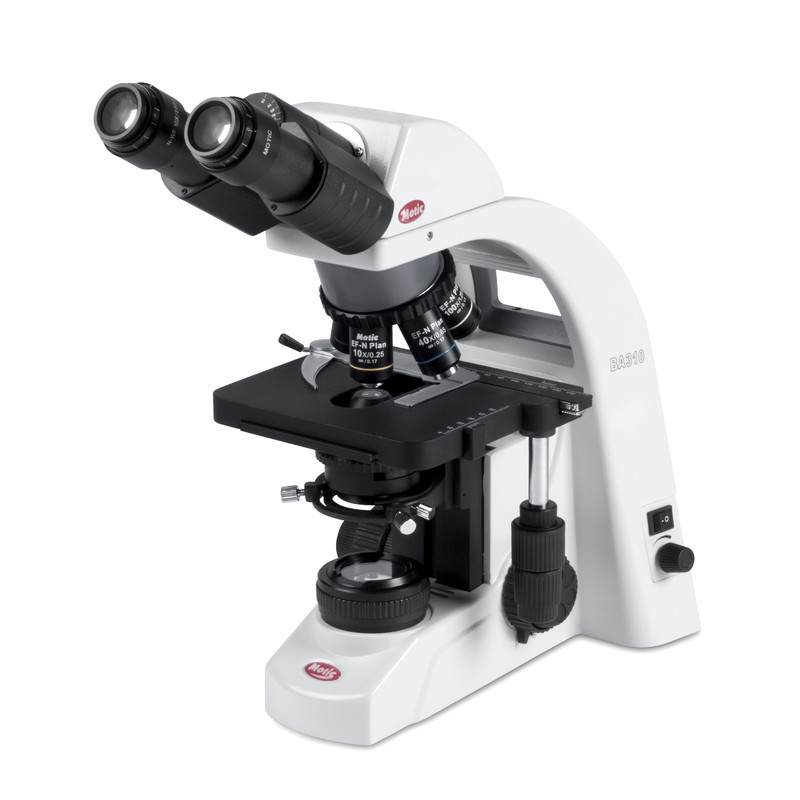

Ba310LED bino
- Optical system Colour Corrected Infinity Optical System (CCIS®)
- Observation tube Binocular head, Siedentopf type, 360º swiveling
- Optical system Colour Corrected Infinity Optical System (CCIS®)
- Observation tube Trinocular head, Siedentopf type, 360º swiveling
- Inclination 30º inclined, 360º rotating
- Trinocular light split 100:0/20:80 (optional 100:0/0:100)
- Interpupillary distance 48-75mm
- Diopter adjustment On both eyepieces, +/- 5 diopter
- Eyepieces Widefield N-WF10X/20mm with diopter adjustment
- Nosepiece Reversed quintuple
- Objective classification CCIS® EC Plan Achromatic, DIN
- Objectives
-4X/0.10 (WD 15.9mm)
-10X/0.25 (WD 17.4mm)
-40X/0.65/S (WD 0.5mm)
-100X/1.25/S-Oil (WD 0.15mm)
- Objective mounting thread W 4/5"x1/36" (RMS standard)
- Stand type Upright

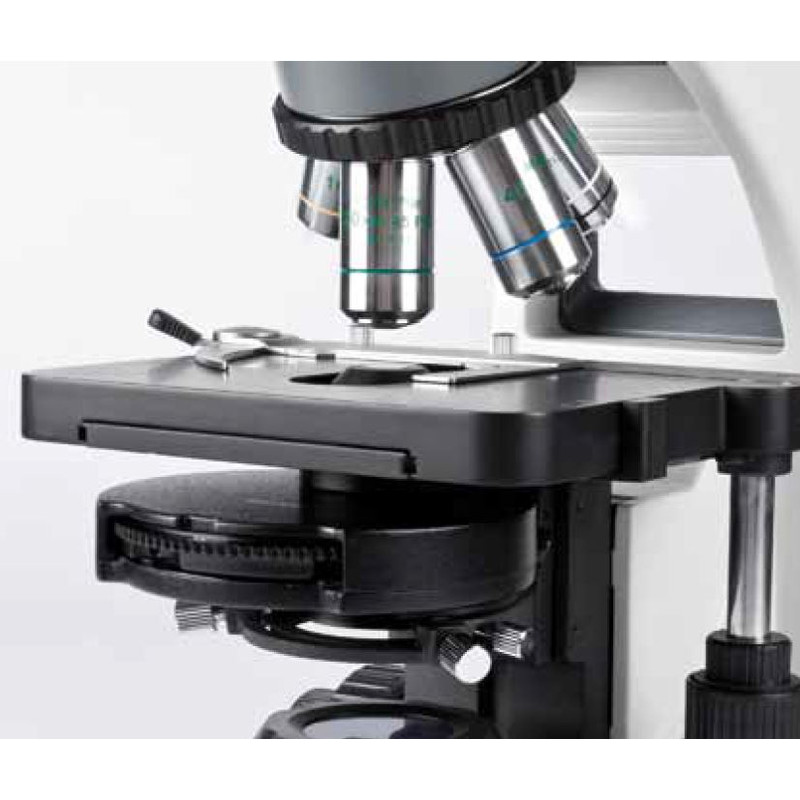

- Stage Mechanical stage with built-in low position coaxial stage control with tension adjustment
- and 2-sample holder
- Stage size 175x140mm
- Travel range X&Y 76x50mm
- Condenser Focusable and centerable Abbe condenser N.A. 0.90/1.25 with slot for contrast sliders
- Diaphragm Iris diaphragm
- Focus mechanism Coaxial coarse and fine focusing system with tension adjustment
- Fine focus precision 2μm
- Focusing stroke 20mm
- Upper limit stop Upper limit stop preset but adjustable
- Filter holder On top of the illuminator
- Transmitted illumination Koehler LED 3W with intensity control
- Transformer Internal
- Power supply 100-240V (CE)
- Accessories included
- Dust cover
- power cord
- Hex key
- Immersion oil (5ml)
- spare fuse
- cord hanger
- thumb screw
- Dimensions LxWxH 400x220x400mm
- Net weight 8.6kg
