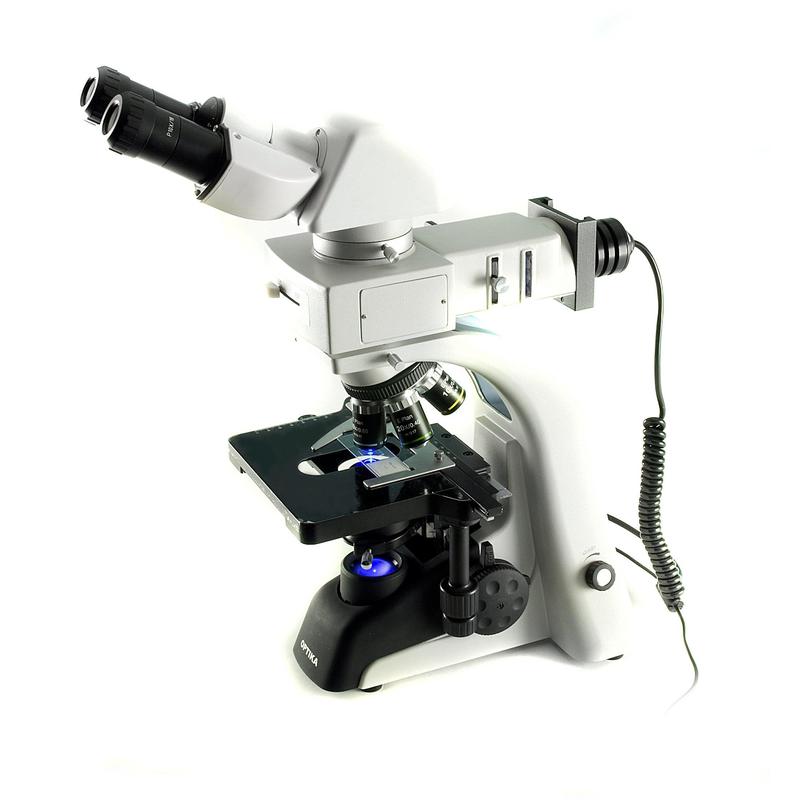

The new B-350 series offers a favorable price-performance ratio. Thanks to the different versions of this device can be used both in advanced teaching facilities as well as in laboratories. Professional users will certainly appreciate the technical features of this series, as well as their quality and reliability.
Optical system and lens
In accordance with different versions, the B-350 microscope equipped with two optical systems: standard anti-fungus 160mm and infinity correct System (IOS). In both cases, the pitch is 20mm.
Tripod
Modern and ergonomic, the tripod is made of aluminum. Coaxial coarse and fine focusing knobs with 0,002 mm scale. Focus adjustable with detention.
Heads
These are available in binocular or trinocular version suitable for photo / video applications. Both heads are equipped with diopter adjustment and eye relief is also adjustable (55-75mm). WF10x/20mm eyepieces suitable for eyeglass wearers.
The heads are 360 ° rotatable, 30 ° inclined.
Lighting
The device is equipped with an LED lighting. The brightness is adjusted by a rheostat, which is located on the right side of the stand.
Condenser
An Abbe condenser is supplied. This can be centered by a two-fold system, and thanks to a rack and pinion drive with buttons on both sides of the microscope you can adjust the height.
The condenser also has an iris diaphragm whose aperture is adjustable (a scale is).
