Monturi & accesorii > Monturi > Ecuatoriala cu GoTo > iOptron > GEM28 > iOptron Montura GEM28EC LiteRoc
Nr. articol: 74331

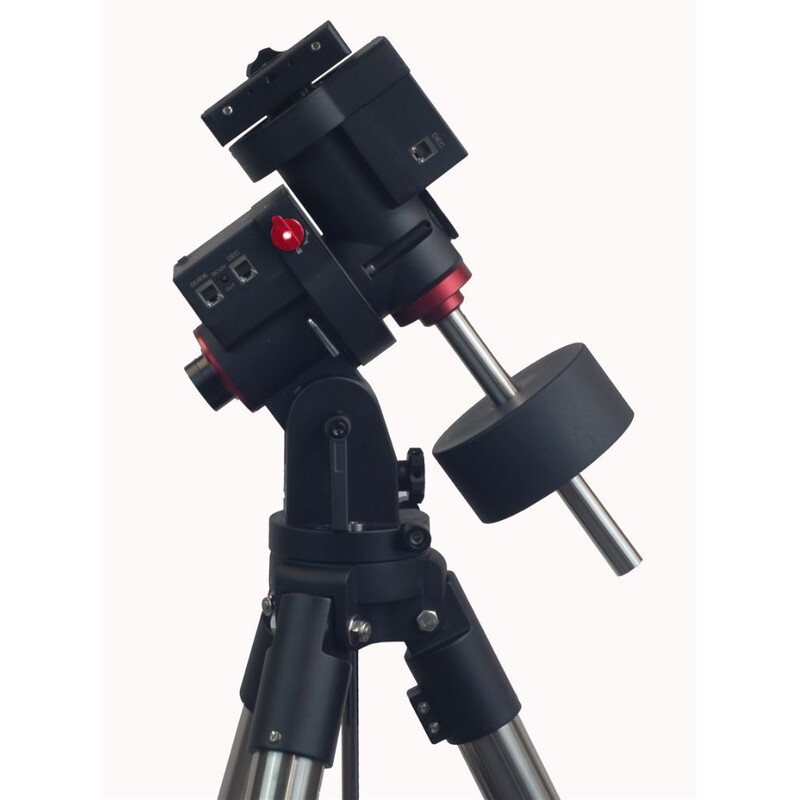

Montura GEM28EC LiteRoc

 $ 4.060,00 Pretul nostru:
$ 3.130,00 incl. TVA, plus costuri de livrare
prea scump?
termen scurt
gata de livrare in 3-5 saptamani + timp de tranzit

Nu este posibilă livrarea înainte de Crăciun
Afișați alternative
Retur posibil până la 31.1.2025!


Descriere produs

Din pacate, descrierea acestui produs nu a fost inca tradusa in limba romana, din acest motiv veti gasi in loc o descriere in limba engleza.

Like most of iOptron’s GEM models, the new GEM28 is also designed to be easy to handle and simple to transport.

The mount can carry loads of up to 12.7kg and provides an optimally balanced weight-to-load ratio (2:8).

This ratio allows the lightweight mount to carry very high loads and is, therefore, ideally suited to mobile astrophotography and observation.

Additionally, iOptron has incorporated very useful functions for user comfort and advanced functionality into the new GEM28.

A built-in WiFi system (easy to use, even when wearing gloves) and integrated WiFi which now displays the periodic error permanently (PEC protocol).

In terms of functionality, the GEM28 provides precise pointing and exceptionally stable object tracking. With this, the GEM28 is setting new standards for medium-sized equatorial GoTo systems.

The GEM28EC is also equipped with the latest Go2Nova® technology, therefore it has some of the most powerful and precise GoTo utilities currently on the market.

The database, with 212,000 listed objects, ensures that you never run out of celestial targets...

The Go2Nova® hand-held controls are intuitive to operate and their large four-line LCD display makes it easier to set up the mount and to find objects in general.

The GEM28EC is equipped with an electronic “iPolar”.

The advantages at a glance:

  • Latitude range from 10° ~ 70°
  • Ideal for visual observations and astrophotography
  • Low periodic error (<± 10 arc seconds)
  • Load capacity of 12.7kg with a mount weight of only 4.5kg
  • Die-cast CNC-machined mounting head
  • Large, easy-to-use quick-lock couplings
  • Low-energy consumption stepper motors
  • Belt drive
  • “Easy Polar Alignment” for those unable to see the Pole Star
  • Go2Nova® hand-held controls with advanced GoTo technology
  • Integrated ST-4 autoguiding port
  • Built-in WiFi
  • USB connection for firmware updates and computerised controls
  • Die-cast metal tripod spreader with accessory shelf
  • Optional 32-channel GPS
  • Optional iGuider autoguiding system

Comentariul expertilor nostrii:

Din pacate, descrierea acestui produs nu a fost inca tradusa in limba romana, din acest motiv veti gasi in loc o descriere in limba engleza.

The thumb turns on the side of the GEM28’s top plate/prism clamp are designed not to stick out much so that, on some models of this mount, the turn may become stuck in or scrape against the casing for the declination axis. Here, 1-2 hard plastic or metal washers can be used to fix this issue. The washers increase the distance between the thumb turn and the casing.

(Jan Ströher)

Date tehnice

Capacitate


Denumire
GEM
Incarcare maxima (kg)
12.7
Reglaj inaltime axa polara (°)
10°-70°
Viteza motor
1, 2, 8, 16, 64, 128, 256, 512
Precizie pozitionare
+/-6
Precizie urmarire
0.17
Material coroana
Aluminiu
Material coroana melcata
alamă
Coroana dintata (RA)
144 (Aluminiu)
Contragreutate/contragreutati
1 (4,5kg)
Material contragreutate
Otel
Diametru tija contragreutati (mm)
20
Software
Go2Nova
Display
Afisaj LCD cu fundal iluminat
Baza de date
212.000
Conexiune controler
Cablu USB & ST4
Interfete
ST-4, HBX, USB, DEC
Ghidaj prin cablu
intern
Temperatura de operare
-10 bis +40
Surse de curent
12V DC, 5A
Consum de energie la functionare libera (mA)
0.9
Tipul de acționare
Roată fără sfârșit

Extras


Scala axa polara
da
Prindere pentru sina prismatica
- (Vixen)
Corectie PEC
da (permanent)
Sistem GoTo
da
GPS
- (optional)
Control prin computer
da
Actualizabil prin internet
da
Tava accesorii
da

Echipare


Cutii transport
da
Luneta polara
da
Adaptor retea
da
Cablu
USB

Trepied


Material trepied
oțel inoxidabil
Greutate trepied (kg)
7

General


Culoare
negru-rosu
Greutate totala (kg)
22
Serii
GEM28

Control GoTo


WIFI
da
Procedura de aliniere
3-Star Alignment, 2-Star Alignment, 1-Star Alignment
Autoguiding
da
Corectie PEC
da
Viteze de urmarire
sideral, solar si lunar
Aliniere Polara
Easy Polar Alignment
