Monturi & accesorii > Monturi > Ecuatoriala cu GoTo > iOptron > CEM26 > iOptron Montura CEM26 ECON
Nr. articol: 80937

Montura CEM26 ECON

$ 1.380,00 incl. TVA, plus costuri de livrare
prea scump?
in stoc
gata de livrare in 24 h + timp de tranzit
Livrare Express posibila pana maine, 22.11.2024!

Livrarea posibilă înainte de Crăciun - când comandați până la prânz pe 18.12.!
Retur posibil până la 31.1.2025!


Descriere produs

Din pacate, descrierea acestui produs nu a fost inca tradusa in limba romana, din acest motiv veti gasi in loc o descriere in limba engleza.

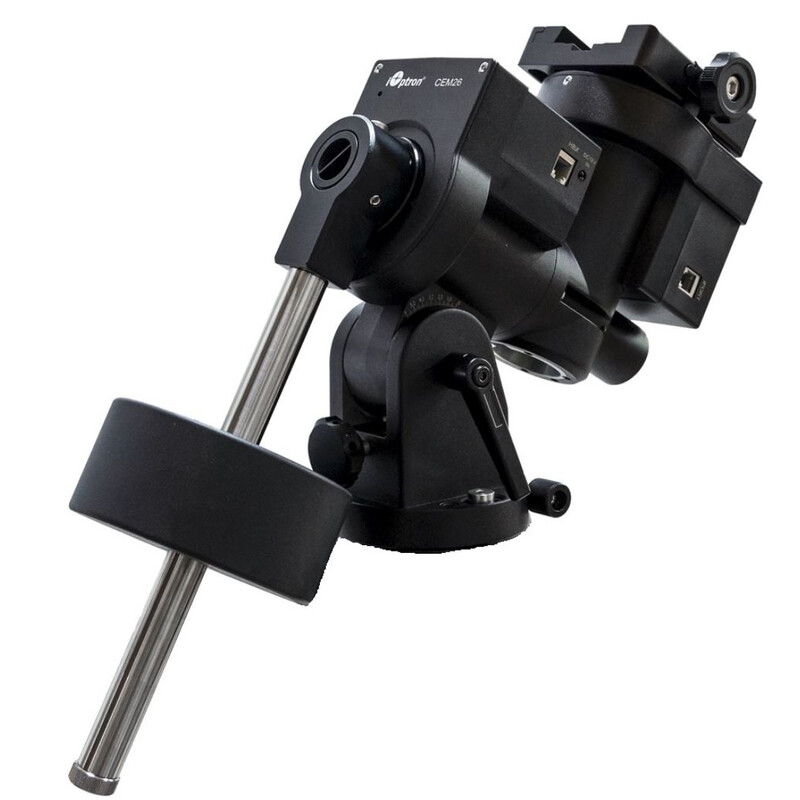

Like the other CEM models, the CEM26 ECON is designed for ease of use and transportation. The mount from iOptron can carry a payload of up to 12 kg and offers an extremely favorable weight-to-payload ratio of 2:6.The key to this optimized ratio is iOptron's proprietary “CEM” (Center-Balanced Equatorial Mounts) design, which directs the mount's own weight and payload directly to the center of the tripod to create a natural center of gravity. Building on the product experience of previous CEM models, further functions have been added to the new CEM26 ECON to ensure maximum comfort during use. An integrated WiFi system is now included, as well as a recordable permanent error correction / Periodic Error Correction (PEC). In terms of functionality, the CEM26 delivers precise approach and highly accurate tracking of the selected objects.The CEM26 ECON sets new standards for compact parallactic GoTo mounts of medium size! The centrally balanced mount head places the weight of the payload at the center and thus enables greater natural stability. This is also a great advantage for astrophotography!

Other features of the CEM26 ECON include a length-adjustable counterweight rod to avoid hitting the legs of the tripod when used very close to the horizon. Alignment to Polaris is now quick and possible in any position, as the integrated optical polar finder is no longer blocked by the shaft of the declination axis (this was the case with the CEM25, for example)...The CEM26 ECON is equipped with the latest Go2Nova® technology, making it one of the most powerful and accurate GoTo mounts currently available on the market! The GoTo software database contains over 212,000 objects. The Go2Nova® hand control box is intuitive to use and the large four-line LCD screen makes finding objects much easier, even in complete darkness.

All the advantages at a glance:

  • unique design
  • centrally balanced equatorial mount for maximum payload and minimum mounting weight
  • ideal for visual observation and astrophotography
  • Low periodic helical error (< ± 10 arc seconds)
  • Load capacity of up to 12 kg with a pure weight of 5 kg
  • CNC-milled and cast metal mount head
  • Large, easy-to-operate rotary wheels
  • Adjustable counterweight rod for operation at 0° width!
  • Stepper motors with low power consumption
  • optical polar finder “AccuAlign”unique design
  • centrally balanced equatorial mount for maximum payload and minimum transport weight
  • 'Easy Polar Alignment' procedure for those who cannot see the polar star
  • Go2Nova® hand control box with the latest GoTo technology
  • Integrated ST-4 autoguiding port
  • built-in WiFiUSB port for firmware updates and control via PC/laptop/tablet

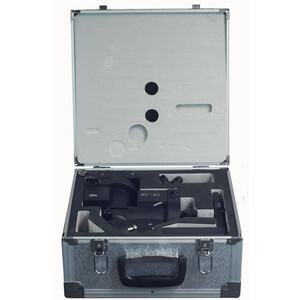

  • Transport case with customized foam lining
  • Optional 32-channel GPS can be retrofitted

Date tehnice

Capacitate


Denumire
Center Balanced Equatorial Mount (CEM)
Incarcare maxima (kg)
12
Reglaj inaltime axa polara (°)
0-60
Viteza motor
1, 2, 8, 16, 64, 128, 256, 512 (Motor pas cu pas)
Precizie pozitionare
0.17
Precizie urmarire
+/-6
Material coroana
alamă
Material coroana melcata
Aluminiu
Coroana dintata (RA)
144 (Aluminiu)
Contragreutate/contragreutati
1 (4,5kg)
Material contragreutate
Otel
Diametru tija contragreutati (mm)
20
Software
Go2Nova 8409
Display
2,17 x 0,8 (Afisaj LCD cu fundal iluminat)
Baza de date
212.000
Conexiune controler
USB & ST-4 Kabel
Interfete
ST-4, USB, HBX
Ghidaj prin cablu
intern
Temperatura de operare
-10° C bis +40° C
Surse de curent
12 (DC)
Consum de energie la functionare libera (mA)
0.8
Tipul de acționare
Roată fără sfârșit

Extras


Scala axa polara
da
Prindere pentru sina prismatica
da (Vixen)
Corectie PEC
da (permanent)
Sistem GoTo
da
Control prin computer
da (ASCOM)
Actualizabil prin internet
da
Tava accesorii
-

Echipare


Cutii transport
nu
Luneta polara
da
Adaptor retea
da
Cablu
USB
Trepied
fara trepied

General


Greutate totala (kg)
5
Serii
CEM26

Control GoTo


WIFI
da
Procedura de aliniere
3-Star Alignment, 2-Star Alignment, 1-Star Alignment
Autoguiding
da
Corectie PEC
da
Viteze de urmarire
sideral, solar si lunar
Aliniere Polara
Easy Polar Alignment
