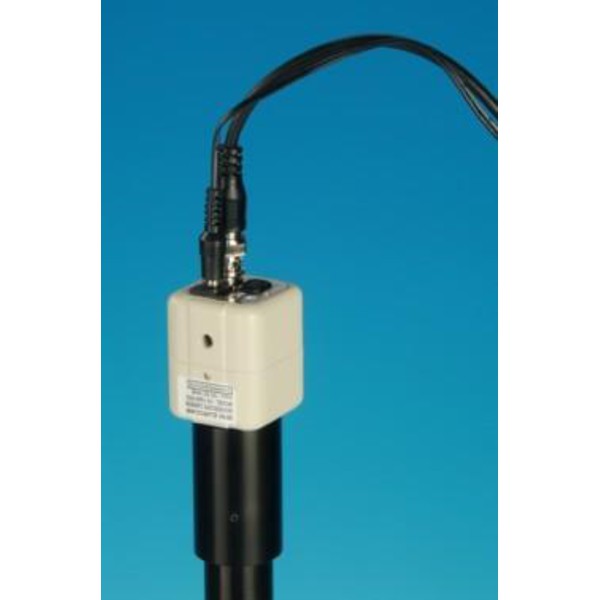

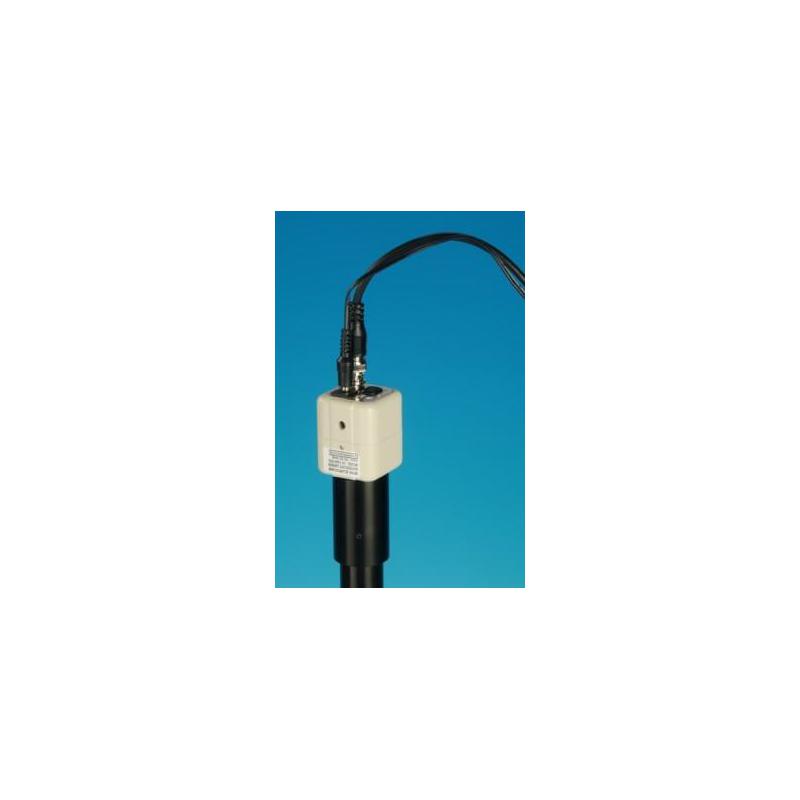

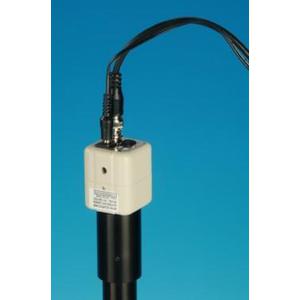

Cameră CCD color VC.1000, (1/3" - 380 linii) + adaptor USB

This Euromex CCD cameras are equipped with composite and / or S-video outputs and can therefore view images on a monitor, television or projector. With a small video-grabber, these images can be digitized. The following models are equipped with 1 / 3- or 1/2 inch CCD sensors and one or two video outputs. The cameras come with the necessary cables.

Eurocam Mini Microscope Camera:

• Recording element: 1/3 "color sensor with 512 (H) x 582 (V) lines Resolution: more than 380 lines, 290,000 pixels
• Minimum Sensitivity: 0.1 Lux, auto white balance
• Shutter control: manual or automatically to 1 / 100,000 seconds
• CS mount for microscope adapter or additional lenses
• Power supply: incl. Detachable cable with plug transformer 12 volts DC
• Dimensions: 42x44x49 cm, weight 170 grams
• Analogue image: Composite Video, BNC output for TV / monitor
• Digital image: with USB adapter for connection to a PC. Plug + Play installation. Ulead VideoStudio software for storing and editing images
• Maximum photo resolution: 640x480 pixels - bmp. format
• Moving pictures: max. 30 frames per second, 352x288 pixel CIF format - Avi. format
• Minimum required computer system: 32 MB RAM, Windows 98/2000 or higher.
• Microscope adapter: incl. Detachable microscope adapter for microscopes with eyepiece tube 23.2 mm
