Astrofotografie > Aparate foto > Camere Astronomice > The Imaging Source > DMK > The Imaging Source Camera alb/negru DMK 31AU03.AS, USB
Nr. articol: 11771

Camera alb/negru DMK 31AU03.AS, USB

termen prelungit
produsul nu mai este disponibil + timp de tranzit

Descriere produs

Din pacate, descrierea acestui produs nu a fost inca tradusa in limba romana, din acest motiv veti gasi in loc o descriere in limba engleza.

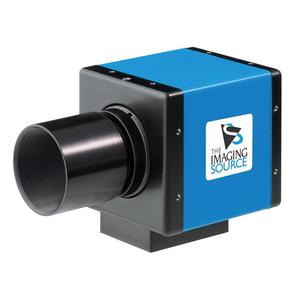

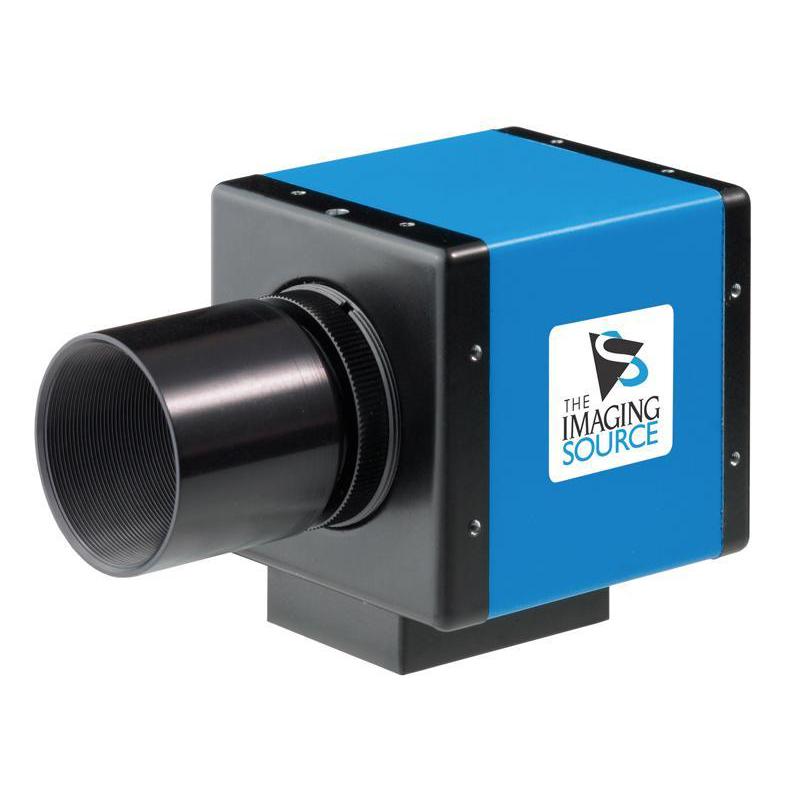

Low Cost Monochrome USB Astro CCD Camera with High Resolution

High resolution, fast refresh rate
The astro CCD cameras DMK 31AU03 unifies three important characteristics for astrophotography: high resolution, fast refresh rate and a low price. Using the shipped software - IC Capture - you can save the captured images to lossless and uncompressed AVI files.

Monochrome Sony CCD
The astro CCD cameras DMK 31AU03.AS is based on the CCD chip ICX204AL, manufactured by Sony. This monochrome CCD has a resolution of 1024 x 768 pixels at 1/3" format. Even at long exposure times, its noise is minimal. Due to the high quality of the ICX204AL, the CCD chip is often used in industrial image processing applications.

No compression, no filter
The image data produced by the CCD camera DMK 31AU03.AS is not compressed. Furthermore, the camera does not have any optical, nor electronic filters. Thus, the camera produces very true-to-life captures of the night sky.

Fast data transfer via USB 2.0
The astro CCD camera DMK 31AU03.AS outputs a fast stream of uncompressed monochrome images. In order to transfer these to the host PC, a very fast bus is required. Hence, the camera is fitted with a USB 2.0 connector.

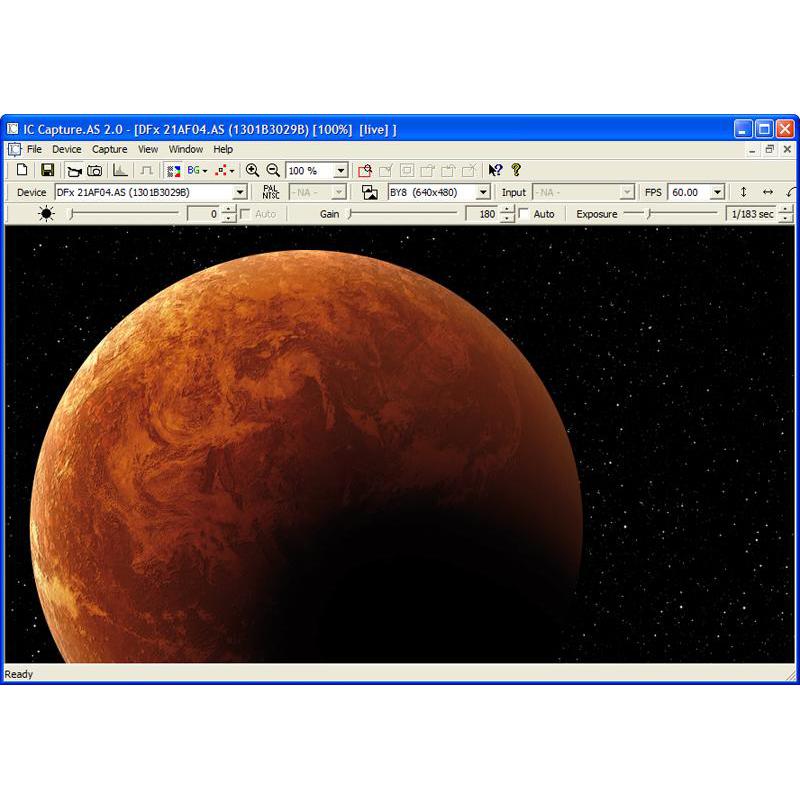

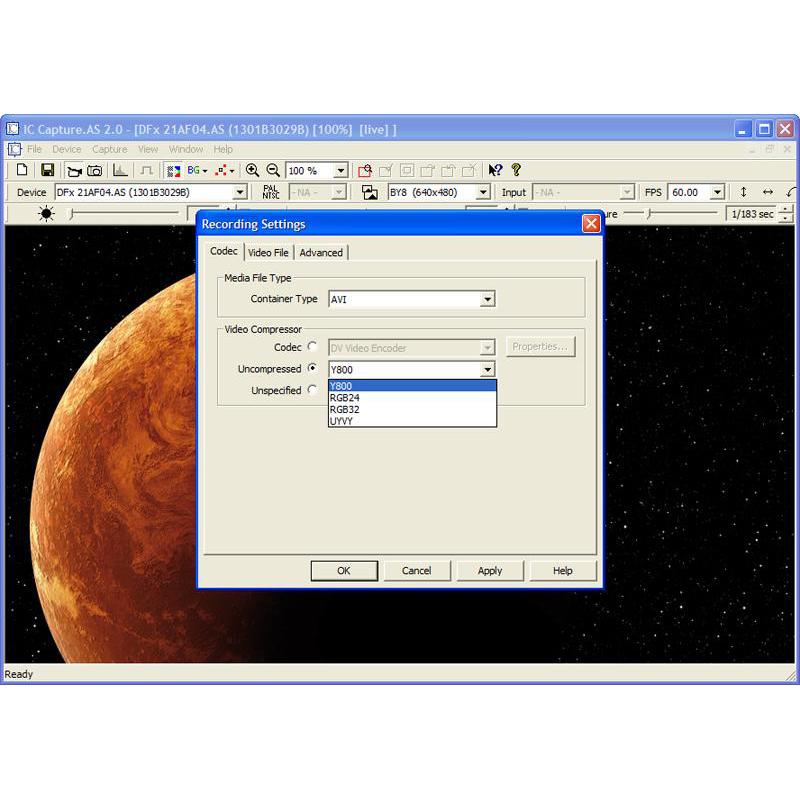

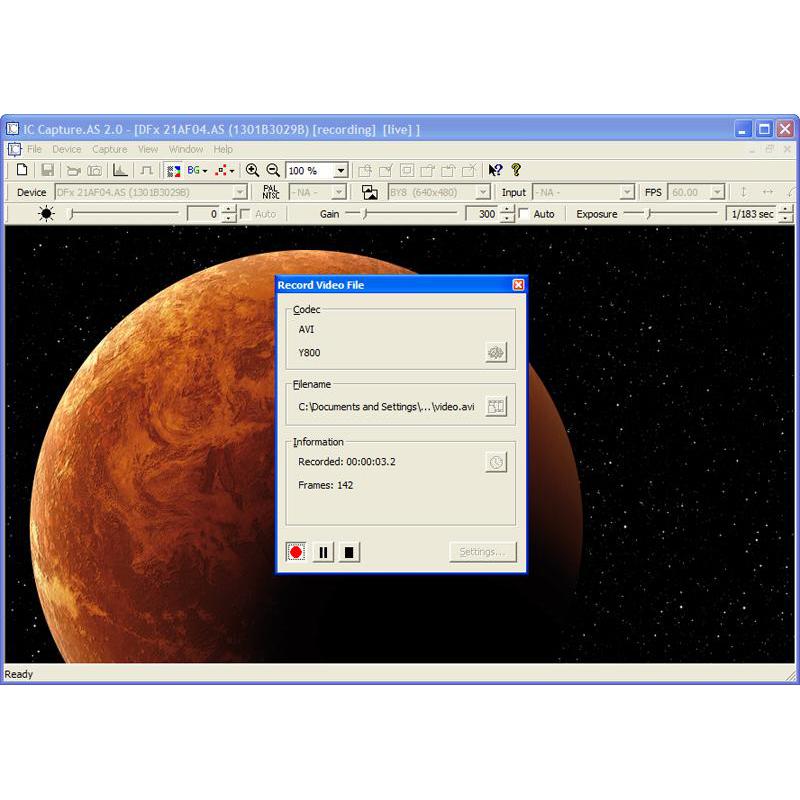

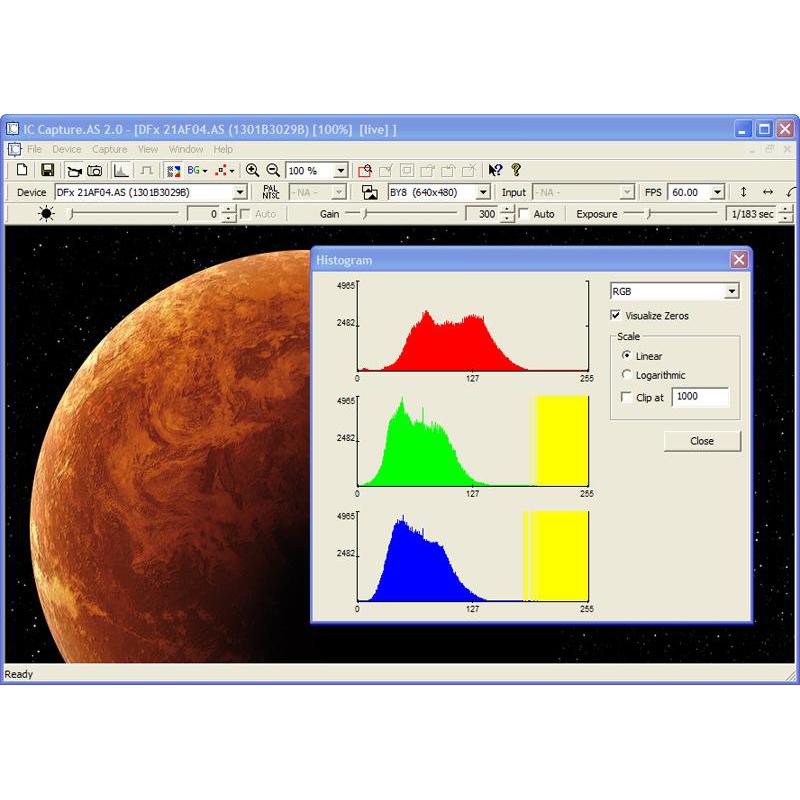

Shipped software for Windows
This camera ships with the camera driver and the control software IC Capture.AS.

  • Monochrome USB camera without IR cut filter
  • 1/3" CCD, progressive scan
  • Resolution 1024 x 768
  • Max. 30 fps
  • Max exposure time 60 min
  • C/CS Mount
  • Software included

Comentariul expertilor nostrii:

Driver pentru camere The Imaging Source (şi pentru Windows 7) găsiţi aici:

Geräte-Treiber für The Imaging Source Kameras

(Bernd Gährken)

A device driver for The Imaging Source cameras (also compatible with Windows 7) can be found here: device driver for The Imaging Source cameras

(Bernd Gährken)

Date tehnice

Capacitate


Conexiune (spre telescop)
1,25"
Tip senzor
Cip CCD (Sony ICX204AL)
Megapixel
0,7
Adancime bit (Bit)
8
Tip camera
Camera Astro CCD
Sensibilitate la lumina (lx)
0,5
Interfete
USB 2.0
Surse de curent
C-Mount / USB
Camera color
nu
Rezolutie imagine
1024x768
Dimensiune pixel
4,7
Amplificare (dB)
0-36
Timp minim de expunere
1/10000
Timp maxim de expunere (min)
30
Consum de energie (mA)
500
Format imagine
BMP, JPEG, AVI
Lungime cablu (m)
1,5
Antiblooming
da
Filet filtru
da
Autoguider
-
Racire
nu
Dark current
-
Micro lentila
-
Raport semnal/zgomot (dB)
-
Zgomot la citire
-
Zgomot senzor
-
Sisteme de operare suportate
cel puțin Windows XP
Diferenta racire maxima sub temperatura camerei
-
Dimensiune chip (mm)
-
Temperatura de operare
-5 bis 45
Cip - Diagonala (mm)
6

Echipare


Roata filtre
nu

General


Lungime (mm)
50
Latime (mm)
50,6
Serii
DMK
Culoare
albastru/negru
Inaltime (mm)
50,6
Greutate (g)
265

Aplicaţii


Autoguider
nu
Luna & Planetele
da
Nebuloase & Galaxii
nu
