Monturi & accesorii > Monturi > Azimutala fara GoTo > Orion Optics UK > Orion Optics UK Montura Dobson Montierung (Rockerbox) für Newtons bis 200mm Öffnung
Nr. articol: 66806

Montura Dobson Montierung (Rockerbox) für Newtons bis 200mm Öffnung

termen prelungit
gata de livrare in 3-6 luni + timp de tranzit

Nu este posibilă livrarea înainte de Crăciun


Descriere produs

Din pacate, descrierea acestui produs nu a fost inca tradusa in limba romana, din acest motiv veti gasi in loc o descriere in limba engleza.

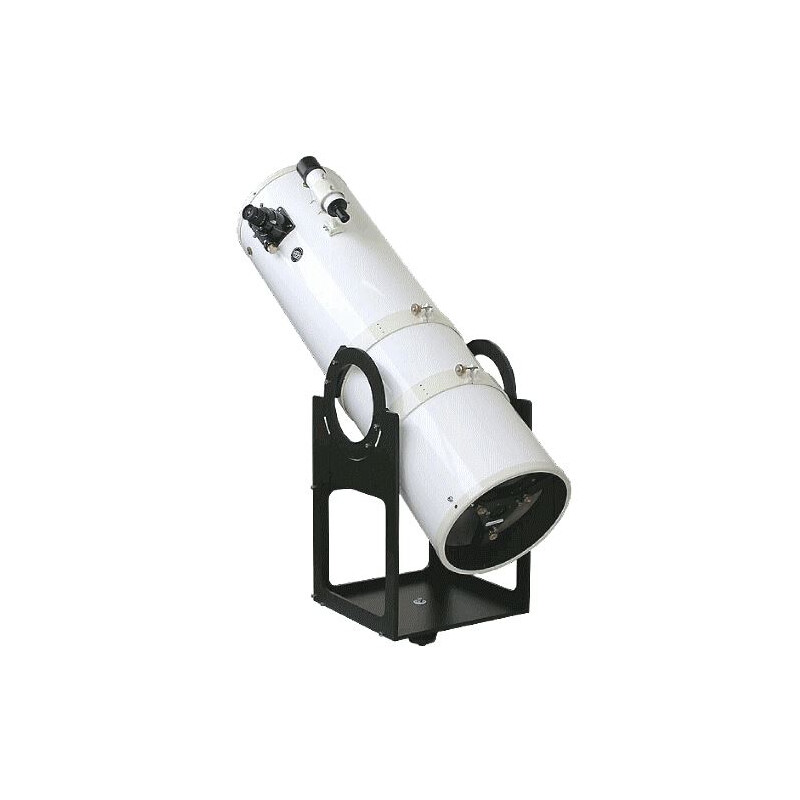

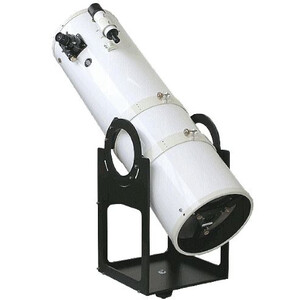

One of the special features of this Dobsonian mount is the ability for owners of Orion UK Newtonian OTAs (and other brands) to be able to just drop their tube straight into this rockerbox. It holds Newtonian telescopes up to 8" of aperture.

A further tremendous advantage is the ability to exactly balance the tube to avoid it moving with the weight of added equipment, large eyepieces, cameras, large finders etc.

Typical Dobsonian designs are renowned for the tube swinging down, when equipment - even of the slightest weight - is added. To avoid this, elaborate devices are often used which seldom work properly.

More common is to increase the drag on the declination axis thus increasing the drag on those bearings and, as a consequence, creating a severe problem in not allowing smooth adjustment of the telescope's position. With the use of our fully adjustable tube cradles and PTFE bearing surfaces you have the capability of adjusting the balance point exactly to accompany the additional equipment you may have added. If you feel the focus mount is not exactly in the most comfortable position for viewing, just rotate the tube for a better, friendlier position.

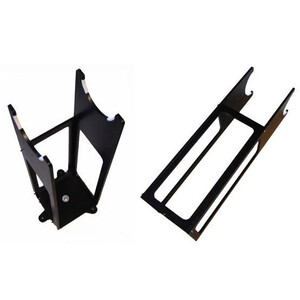

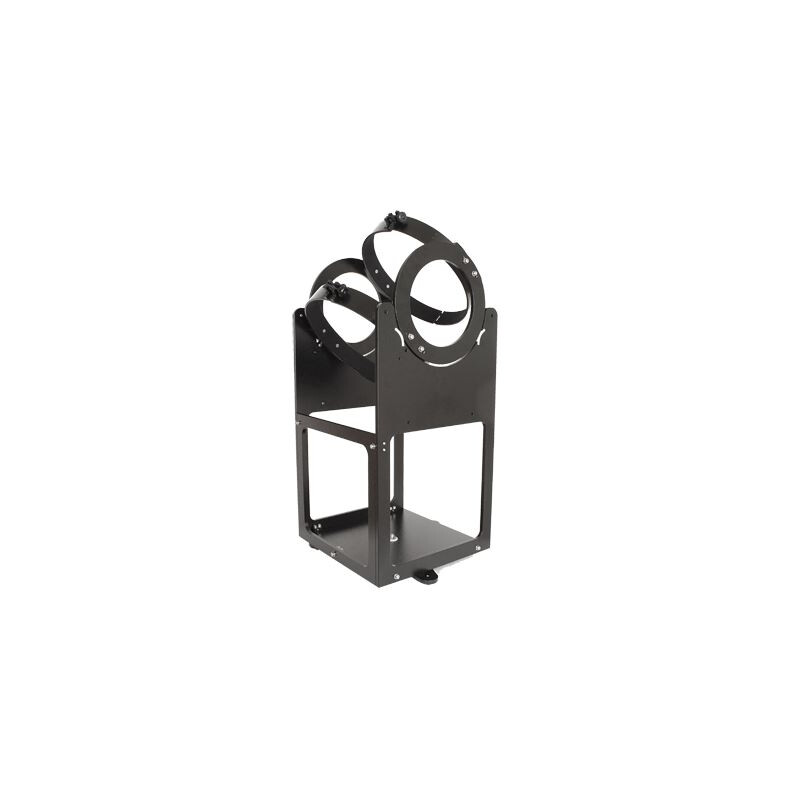

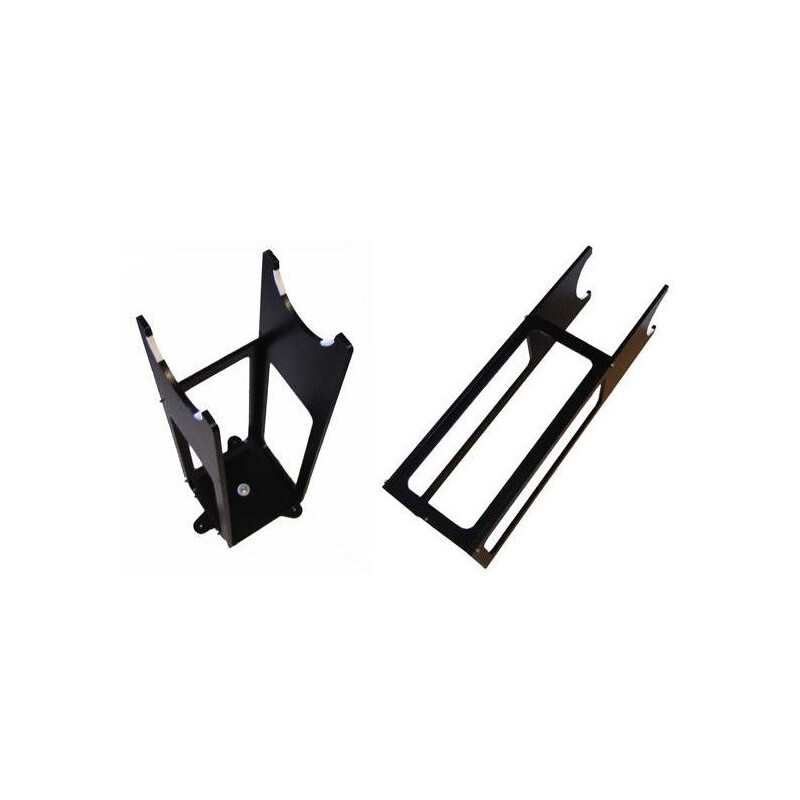

Mount includes: Rocker box, all PTFE bearing surfaces, polymer non scratch screw on feet, declination CNC machined bearing rings. To fit an OTA, tube rings and blocks are required to suit your OTA size.

Date tehnice

Echipare


Cleme inele tub
nu

General


Culoare
negru
Greutate totala (kg)
10
Tip
Montura
Inaltime (mm)
700
Diametru interior (mm)
261

Siguranța produselor

Producător: OOUK Ltd, Brymbo Road Lymedale Ind Est, ST5 9HX Newcastle under Lyme, http://www.orionoptics.co.uk/
Persoana responsabilă: NIMAX GmbH, Otto-Lilienthal-Str. 9, 86899 Landsberg am Lech, DE, [email protected]
