Microscoape > Accesorii microscopie > Aparate foto > Aparate foto > ToupTek > X7CAM4K > ToupTek Camera ToupCam X7CAM4K 8MPB, color, CMOS, 1/1.2, 2.9 µm, 75 fps, 8 MP, HDMI/LAN/USB
Nr. articol: 80319

Camera ToupCam X7CAM4K 8MPB, color, CMOS, 1/1.2, 2.9 µm, 75 fps, 8 MP, HDMI/LAN/USB

$ 1.350,00 incl. TVA plus costuri de livrare
prea scump?
termen prelungit
produsul nu mai este disponibil + timp de tranzit

Nu este posibilă livrarea înainte de Crăciun


Descriere produs

Din pacate, descrierea acestui produs nu a fost inca tradusa in limba romana, din acest motiv veti gasi in loc o descriere in limba engleza.

X7CAM4K cameras

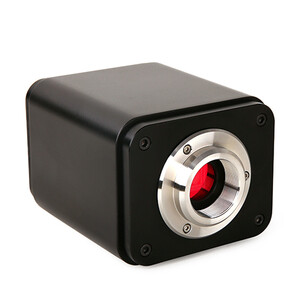

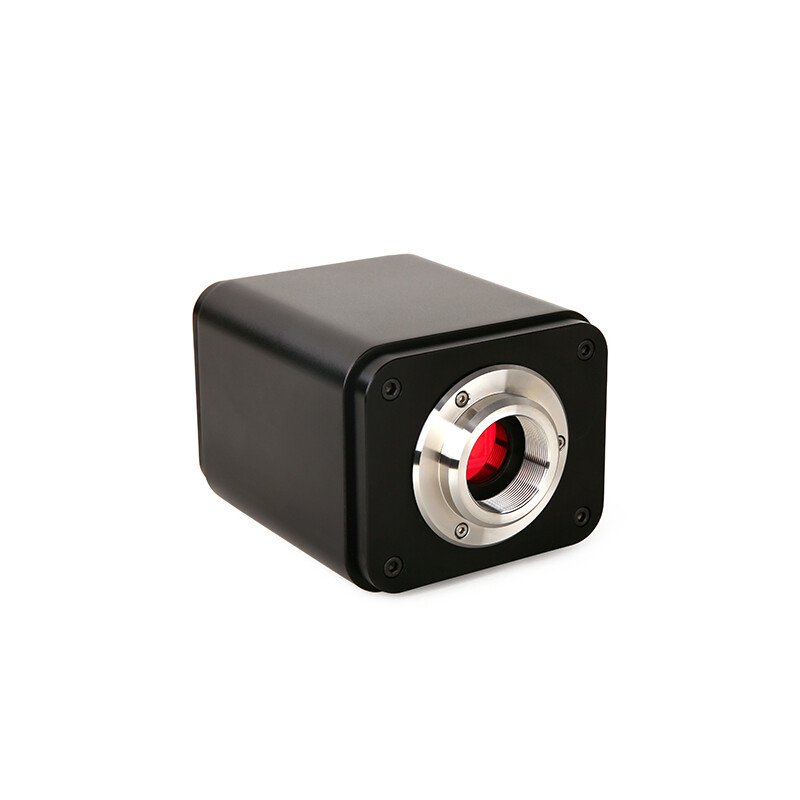

The X7CAM4K series cameras are the next-generation live-view imaging-systems with 4K resolution(Video) up to 75 FPS (model-dependent). It comes with Sony CMOS sensor with high sensitivity, low dark current and no smear achieved through the adoption of R, G and B primary color mosaic filters. The cameras are suitable for scientific investigations, as well as teaching (online classes, demonstrations, academic exchanges) and medical examinations or industrial purposes.

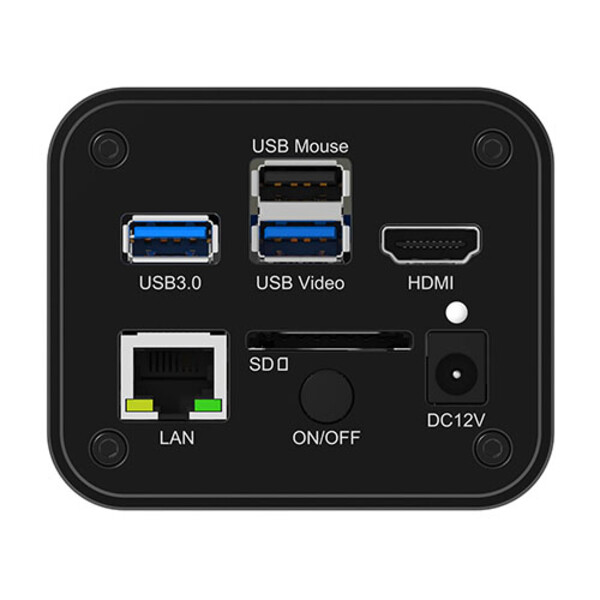

A standard C-mount interface ensures maximum compatibility with various microscope systems. The cameras can be used as a stand-alone system without a PC in conjunction with an HDMI monitor or TV, or streamed live to a PC via Gigabit Ethernet (LAN) for image and video recording.

All cameras in the series come with the advanced ToupView/ToupLite video and image processing application. This is compatible with Windows/Linux/macOS/Android (Native C/C++, C#/VB.NET, Python, Java, DirectShow, Twain, etc).

Scope of delivery:

camera, power adapter (EU & US standard), USB mouse, HDMI cable, USB 3.0 cable, CD (driver & software)

Date tehnice

Capacitate


Megapixel
8 MP

Camera


Dimensiune pixel
2,9
Rezolutie imagine
3840x2160
Rezolutie video
3840x2160
este necesar un adaptor
0.83x, 0.85x, 1x c-mount
numar de cadre (cadre pe secunda)
75
Transmiterea imaginii
HDMI
Dimensiune chip (″)
1/1.2
Capacitate de stocare extensibila
da
Camera color
da
Declansator
Rolling Shutter
Megapixel
8
răcire
nu
Interfata
HDMI, USB 3.0, LAN, SD-Karte
senzor
CMOS (Sony Exmor)
Software
ToupView/ToupLite
Sisteme de operare suportate
Windows, Linux, macOS, iOS, Android
Functie video
da
Sensibilitate (mV/s)
1028

General


Latime (mm)
98,3
Inaltime (mm)
78
Lungime (mm)
65
Greutate (g)
470
Serii
X7CAM4K

Domeniul de aplicare


Medicină
da
Hobby
da
Industrie
da
Educatie
da

Alte produse


numar produs
X7CAM4K8MPB

Siguranța produselor

Producător: ToupTek Photonics Co., Ltd., 15F, Aoqiang Building 1, No. 6, Xiyuan 5th Rd., Hangzhou, 310030 Zhejiang, CN, www.touptek.com
Persoana responsabilă: NIMAX GmbH, Otto-Lilienthal-Str. 9, 86899 Landsberg am Lech, DE, [email protected]
