MOTICAM S SERIES
NEW MOTICAM S SERIES
Motics new sCMOS cameras, designed by German engineers and manufactured by professionals represent an impressive impetus to microscope camera performance. With a member of this product line the door for new application fields opens
wide. The accelerated data readout enables to work on fast phenomena in biology and industry.
MOTIC IMAGES PLUS 3.0 SOFTWARE
Our well-known Motic Images software, always with a cost-free upgrade option is included in all camera packages and enables to view images at maximum quality, capture, edit, measure and report the result... all these features are ready to
work on your PC or laptop.

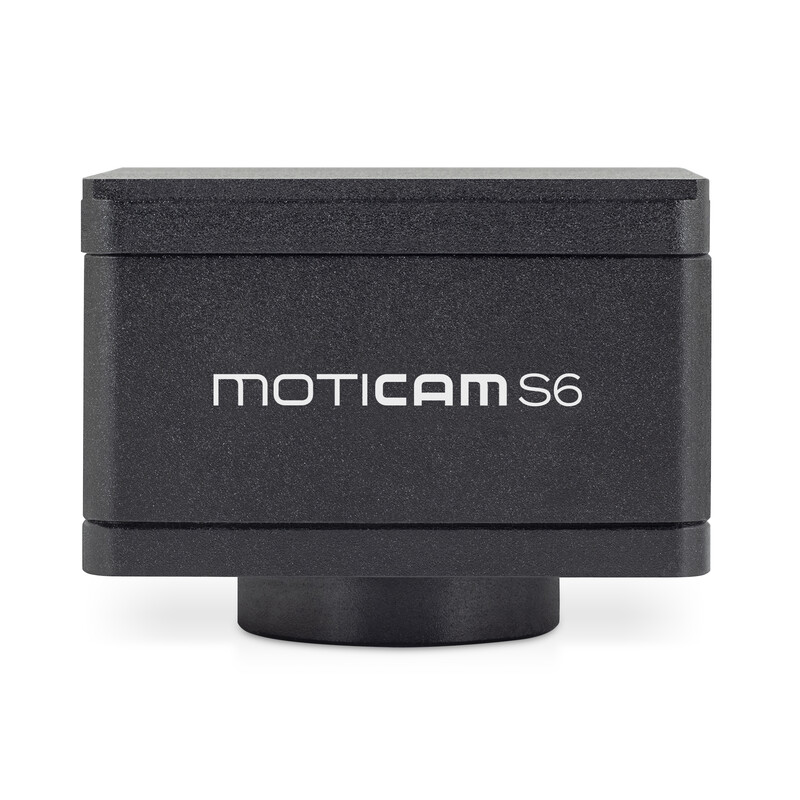

MOTICAM S6
FOR A GREATER PUBLIC
The 6MP resolution of Moticam S6 is targeted to large-sized monitors and printing purposes. Presentations to a greater audience through video projector, reports in hardcopy are performed with ease of handling. The price/performance ratio is remarkable!

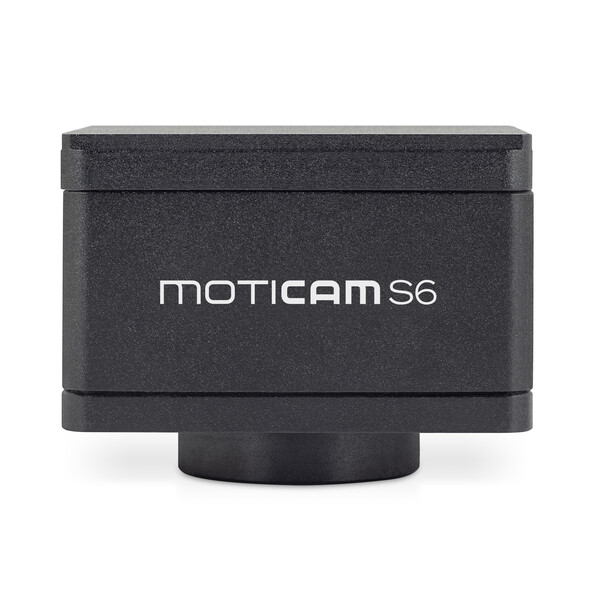

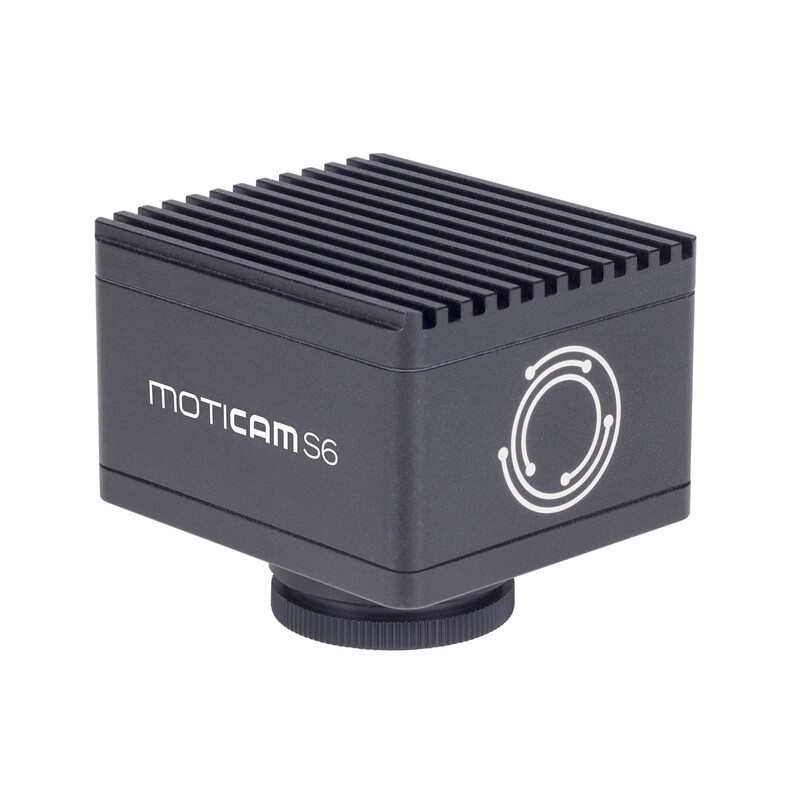

MOTICAM S6
- Sensor type sCMOS
- Sensor size 1/1.8"
- Imaging area 8.92mm (Diagonal)
- Capture resolution 6MP
- Live display mode through USB 3072x2048, 1536x1024 pixels
- Pixel size 2.4x2.4μm
- Scan mode Progressive
- Shutter mode Rolling Shutter
- Data transfer USB 3.1
- Max. frames per second (fps*) 3072x2048 @ 30fps 1536x1024 @ 50fps
- Exposure time 16 μsec to 2 sec
- Operating temperature From -10 to +60 Degrees Celsius non condensing
- Sensitivity 425mV(G) @ 1/30 sec
- Support device TWAIN, SDK and DirectShow Driver
- Supported OS Microsoft Windows 7/8/10, MAC OSX10.9, Linux or higher
- Minimum computer requirements 2GHz dualcore - RAM memory 2GB - Video memory min. 512 MB

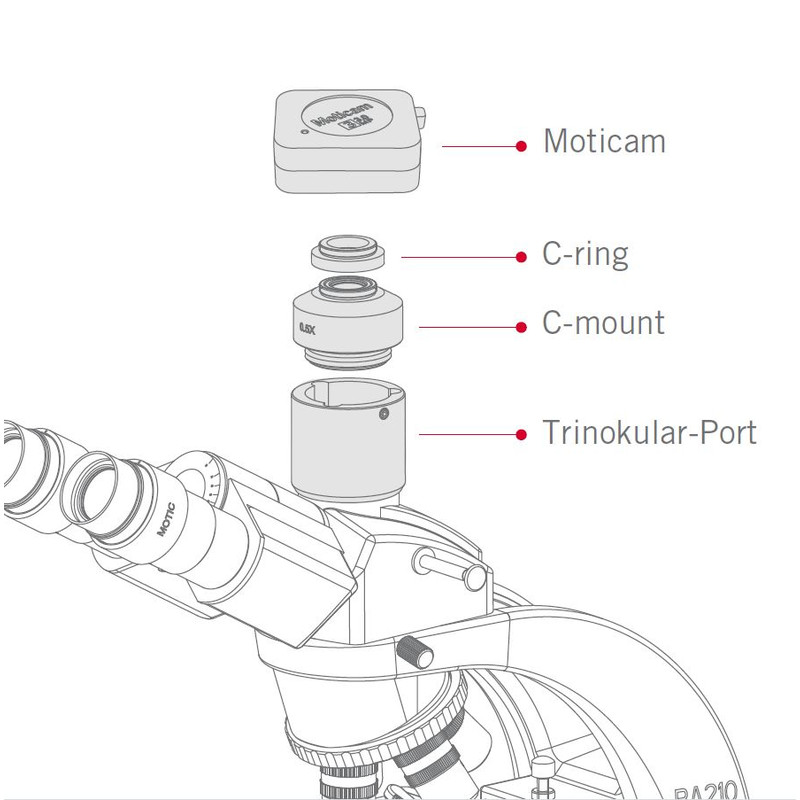

- Lens mount C-Mount
- Software Motic Images Plus 3.0 for Windows, OSX and Linux
- Functions Still image and video capture, live and still image measurement, image adjustments, white balance, automatic & manual exposure, individual objective calibration system.
- Power supply 5V (from USB Port)
- Package includes CS ring adaptor, USB 3.1 cable, Motic 4-dot calibration slide, Motic Images Plus 3.0 for PC/OSX/Linux
