HD-Autofocus, VC.3034, HDMI
The Euromex HD-Autofocus camera offers the perfect solution to modern microscopy for education, industry and laboratories where real time images are needed. The autofocus function eliminates the need of re-focusing when changing subjects or while scanning objects that are different in height. Ideal for all sorts of quality control set-ups! This HD image quality camera can be used for stereo, biological and metallurgical microscopes. Automatic focusing high definition HD1080p CMOS color camera with HDMI interface and on-screen measurement function. The real time images generated with this stand-alone camera provide excellent color rendering at high frame rates, up to 60 frames per second. The HD-Autofocus high definition camera is a stand-alone system, no need for computer (knowledge). With embedded mouse-driven software and measurement function. Images and videos are saved to included SD-Card.Camera is easily mounted into the eyepiece tube or on the trinocular port, using the included c-mount objective.
Highlights
- HD 1080p high definition video camera
- Autofocus system
- Real time images directly on TV, monitor or beamer (HDMI)
- Stand alone system
- Built-in mouse-driven software
- C-mount interface
- HDMI and SD memory card
TECHNICAL SPECIFICATIONS
- Sensor SONY IMX185 2.0Mega Pixels CMOS
- high sensitive sensor
- Format 1/1.9”, HDTV 1080p (50/60Hz)
- Pixels 1920 x 1080 pixels (capture mode)
- 1920 x 1080 pixels (live view), HDMI 60 fps
- Pixel size 3.75 x 3.75 um
- Video 1080p pixels video recording mode
- Scan mode Progressive scan, rolling shutter
- Noise De-noise function supported
- Senitivity 1120mv with 1/30s
- Exposure Automatic/ manual
- White balance Automatic/ manual
- Dynamic range N/A
- S/N Max N/A
- Interfaces Digital HDMI
- Storage High speed 16 GB SD Memory card
- (larger capacity SD cards are optional)
- Camera buttons On/ Off
- Mounting C-mount interface
- Power supply DC 12V/1A Adapter
- Operation -10~ 50 ° Celsius, 30~80 % humidity
- Storage temperature -20~ 60 70° Celsius, 10~60%RH
- Measurement Supported
EMBEDDED SOFTWARE
- displayed on TV, no need for computer
- Capture images and videos to SD
- Playback images from SD
- Measurements(like Angle, Line, Horizontal Line, Vertical Line, Rectangle, Circle, Ellipse, Annulus, Two Circles, Polygon, Curve, etc)
- Compare images
- Grids
- Digital zoom in/out
- Flip
- Pause
- Camera settings (white balance, color control etc)

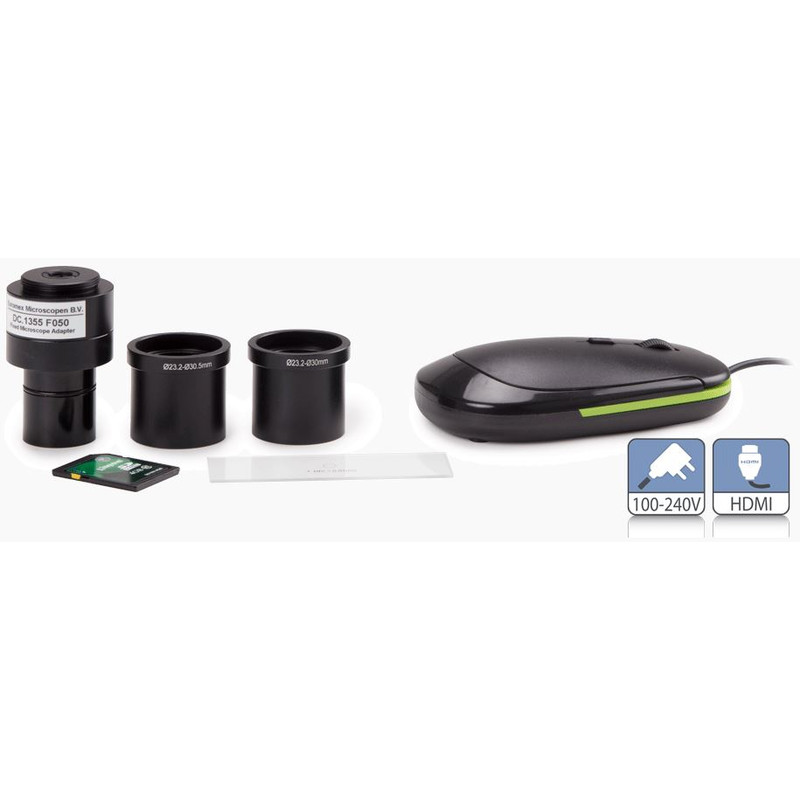

Delivery
- 0.5x objective with C-mount
- High speed 16 GB SD Memory card
- USB 3 cable
- 30 and 30.5mm adapter for stereo microscopes
- 12V/1A power adapter, HDMI cable,
- USB mouse
- 76x24mm calibration slide (1mm/100),
- carton box
